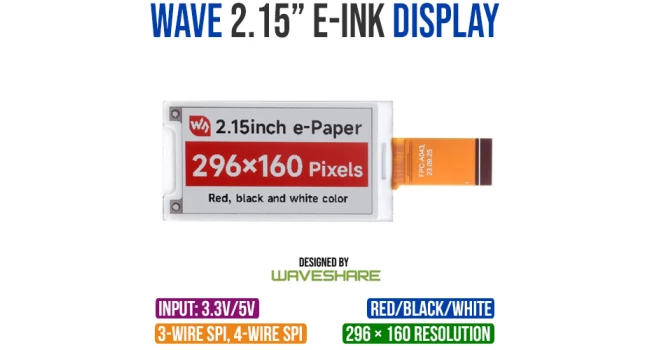

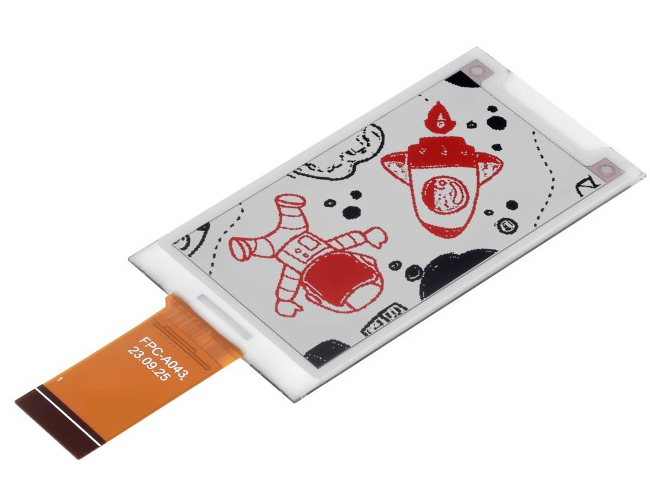

Wave 2.15" Raw E-Ink Display - Red/Black/White
The Wave 2.15" Raw E-Ink Display is a compact e-Paper module with a 296x160 resolution and tri-color display (Red, Black, White). Featuring electrophoretic technology, this display mimics the appearance of traditional printed paper, offering a wide viewing angle of over 170° without requiring backlight. Its ultra-low power consumption allows it to retain the last displayed content even when powered down, making it ideal for energy-efficient applications.
Designed with a 3.3V operating voltage and SPI interface (3-wire and 4-wire), this display is compatible with Raspberry Pi, Jetson Nano, Arduino, STM32, and more. It includes online development resources, including examples and circuit diagrams, to support seamless integration and project development.
Quick Spec
- Display Size: 2.15 inches
- Resolution: 296 × 160 pixels
- Colors: Red, Black, White
- Interface: 3-wire SPI, 4-wire SPI
- Viewing Angle: >170°
- Refresh Time: 23 seconds (full refresh)
- Power: 3.3V
- Power Consumption: <15mW (refresh), <0.01μA (standby)
- Dot Pitch: 0.1625 × 0.1625 mm
- Compatibility: Raspberry Pi, Arduino, STM32, Jetson Nano
- Display Size: 48.10 x 26 mm
- Dimensions: 60.8 x 31.8 x 1.00 mm

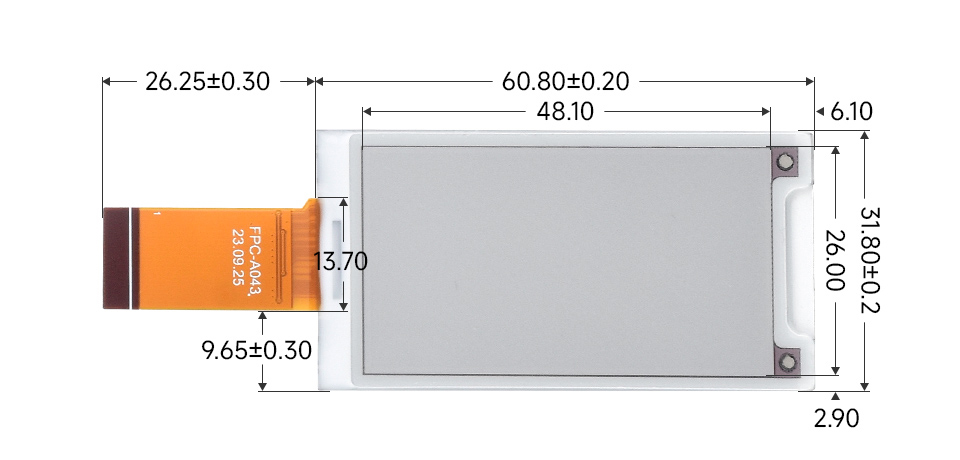

Dimensions
Resources
Shipping List
- 1 x Wave 2.15" Raw E-Ink Display - Red/Black/White
Wave 2.15" Raw E-Ink Display - Red/Black/White
- Brand: Waveshare
- Product Code: W28815
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R113.00 (Inc Tax: R129.95)
