Waveshare RP2350 Dev Board with 0.96" IPS Display

The Waveshare RP2350 Dev Board with 0.96" IPS Display is a compact, high-performance development platform built around the Raspberry Pi RP2350A microcontroller. It features a dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V processor architecture running up to 150MHz, providing exceptional flexibility for embedded and IoT projects. The board includes 520KB of SRAM, 4MB on-chip Flash, and a bright 0.96-inch IPS display, ideal for compact visual interfaces.



Designed for developers and makers, it offers extensive connectivity through 26 multifunction GPIO pins and a variety of hardware peripherals including SPI, I²C, UART, ADC, PWM, and PIO. Power efficiency is ensured by onboard high-efficiency DC-DC converters (MP28164 and TPS63000) supporting up to 2A output current. It also supports USB 1.1 host/device, Type-C connectivity, and drag-and-drop programming for quick setup. Compatible with both Raspberry Pi C/C++ SDK and MicroPython, this board is perfect for education, prototyping, and integration into end products.

Quick Spec

• MCU: Raspberry Pi RP2350A
• CPU: Dual-core ARM Cortex-M33 + Dual-core Hazard3 RISC-V @150MHz
• Memory: 520KB SRAM, 4MB Flash
• Display: 0.96" IPS LCD
• GPIO: 26 multifunction pins
• Peripherals: SPI ×2, I²C ×2, UART ×2, ADC (12-bit) ×4, PWM ×16
• Programmable I/O: 12 PIO state machines
• Power ICs: MP28164 & TPS63000 DC-DC converters (up to 2A load current)
• Interfaces: USB Type-C, USB 1.1 Host/Device
• Onboard features: Temperature sensor, accurate clock/timer
• Supported languages: C/C++ SDK, MicroPython
• Operating modes: Sleep and hibernation

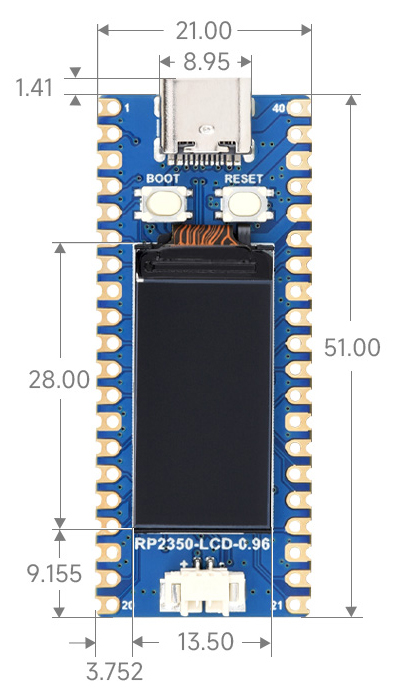

Dimensions

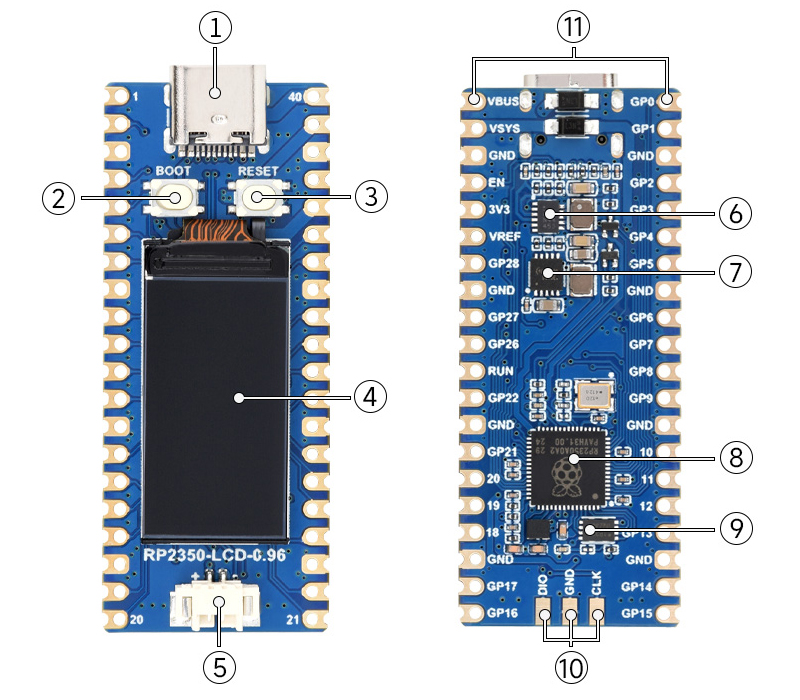

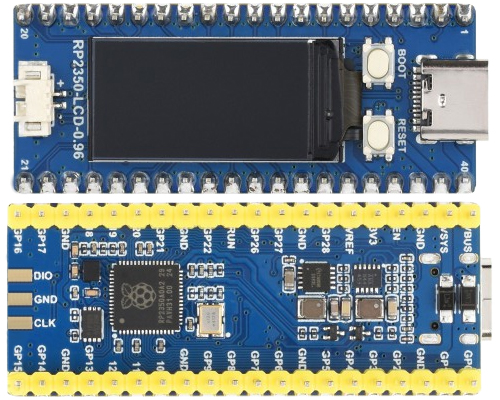

Board Layout

1. USB Type-C connector: for program downloading, supports USB1.1 hosts and slave devices
2. BOOT button
3. RESET button
4. 0.96inch IPS LCD display: 160 × 80 pixels, 65K colorful
5. Battery header: MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
6. MP28164: high efficiency DC-DC buck-boost chip
7. ETA6096: high efficiency Lithium battery recharge manager
8. RP2350A: Dual-core and dual-architecture design, up to 150 MHz operating frequency
9. P25Q32SH-UXH-IR: 4MB NOR-Flash
10. DEBUG points
11. Pinout: compatible with Raspberry Pi Pico 2

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• ST7735S Datasheet (LCD)

Shipping List

• 1 x Waveshare RP2350 Dev Board with 0.96" IPS Display
