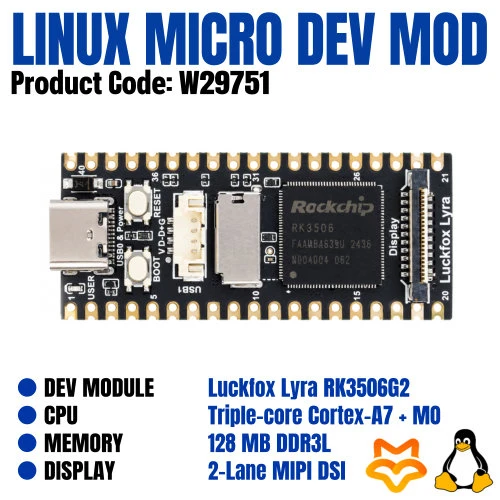

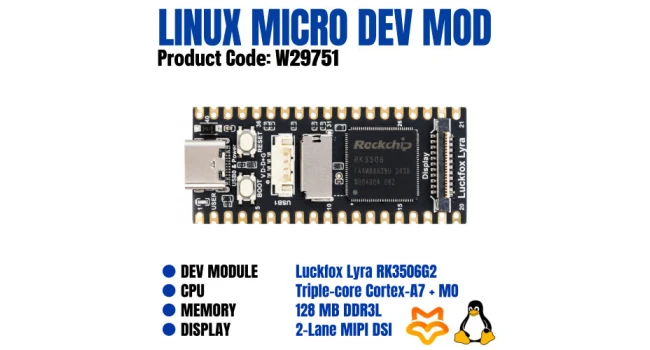

Luckfox Lyra RK3506G2 Linux Micro Development Board
The Luckfox Lyra is a compact Linux development board powered by the RK3506G2 processor, combining triple-core Cortex-A7 performance with a Cortex-M0 coprocessor, MIPI DSI display support, USB-C connectivity, and extensive expansion interfaces for embedded Linux, HMI, and industrial applications.
Quick Spec
- Processor: RK3506G2 Triple-Core Cortex-A7 + Cortex-M0
- CPU Speed: Up to 1.2GHz
- Memory: 128MB DDR3L
- Display Interface: 2-Lane MIPI DSI
- USB: 2 × USB OTG 2.0
- GPIO: 24 Matrix IO Pins
- Storage: MicroSD (TF) Card Slot
- Power Input: USB Type-C
- Interfaces: UART, I²C, SPI, PWM, CAN & ADC
Dimensions
Pin Guide
Resources
Shipping List
- 1× Luckfox Lyra RK3506G2 Linux Micro Development Board
Luckfox Lyra RK3506G2 Linux Micro Development Board
- Brand: Waveshare
- Product Code: W29751
- Weight: 0.008kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC108 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R498.00 (Inc Tax: R572.70)
Tags: Luckfox Lyra, RK3506G2, Linux, Cortex-A7, Cortex-M0, Rockchip, MIPI DSI, USB Type-C, USB OTG, Matrix IO, Embedded, Development Board
