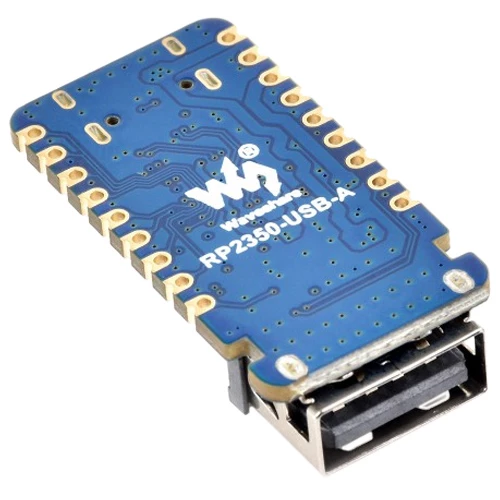

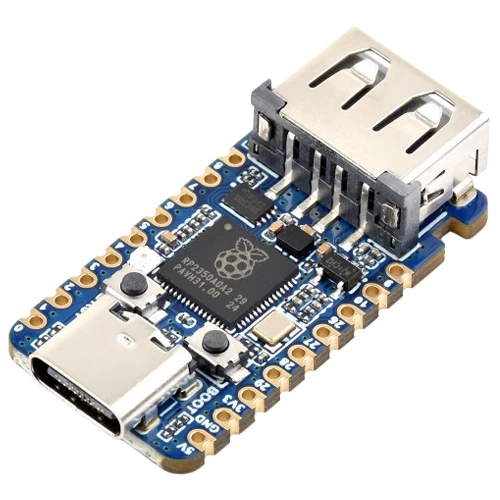

Wave RP2350A USB Mini Dev Board – 150MHz

The Waveshare RP2350A USB Mini Development Board is a compact yet powerful platform built around the Raspberry Pi–designed RP2350A dual-core microcontroller. Featuring a dual-architecture design (Arm Cortex-M33 and Hazard3 RISC-V cores) running at up to 150 MHz, this board delivers excellent performance for embedded applications. With 520KB of SRAM, 2MB of onboard Flash, and a rich set of peripherals, it’s ideal for rapid prototyping and integration into custom projects.



Its miniature design with castellated edges allows easy soldering to carrier boards, while the onboard USB Type-C connector ensures convenient power and programming. The board also provides 15 multifunction GPIOs, multiple communication interfaces, ADCs, PWM channels, and PIO support for creating custom peripherals. With support for drag-and-drop programming, C/C++, and Arduino IDE, the RP2350A Mini Dev Board is a versatile choice for makers, students, and developers.

Quick Spec

• Microcontroller: Raspberry Pi RP2350A
• CPU: Dual-core Arm Cortex-M33 + Dual-core Hazard3 RISC-V, up to 150 MHz
• Memory: 520KB SRAM, 2MB onboard Flash
• USB: USB Type-C (programming, power) + USB Type-A expansion (USB 2.0/1.1) via PIO
• GPIO: 15 multifunction pins
• Peripherals:
• 2 × SPI
• 2 × I2C
• 2 × UART
• 4 × 12-bit ADC
• 14 × PWM channels
• 12 × PIO state machines
• Additional Features: Built-in temperature sensor, accurate on-chip clock and timers, floating-point libraries
• Programming: Drag-and-drop over USB, supports C/C++, Arduino IDE
• Form Factor: Castellated edges for easy carrier board integration
• Low Power: Sleep and dormant modes

Dimensions

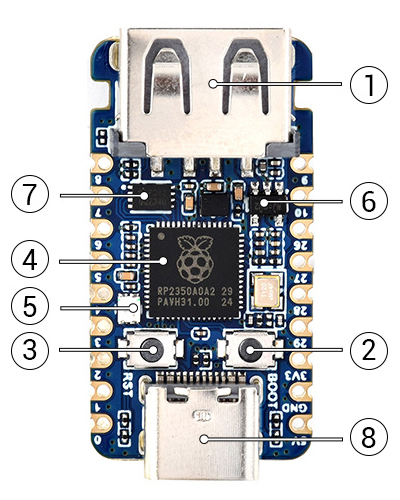

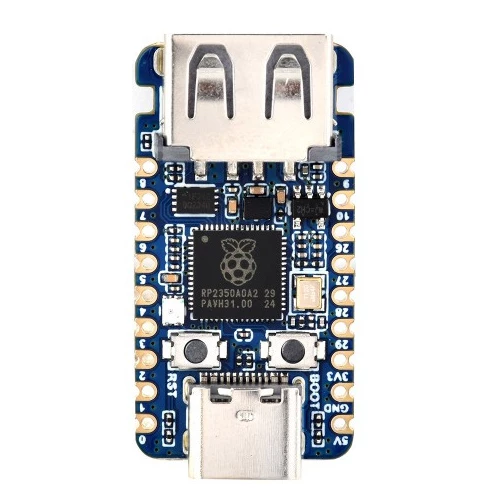

Board Layout

1. USB 2.0 Type A connector: Supports USB host or device via PIO
2. BOOT button: Press it when resetting to enter download mode
3. RESET button
4. RP2350A: Dual-core and dual-architecture design, up to 150 MHz operating frequency
5. WS2812: cool RGB LED
6. RT9013-33GB: 500mA LDO regulator, low noise, ultra-fast response
7. W25Q16JVUXIQ: 2MB NOR-Flash
8. USB Type-C connector: for programming, USB 1.1 with device and host support

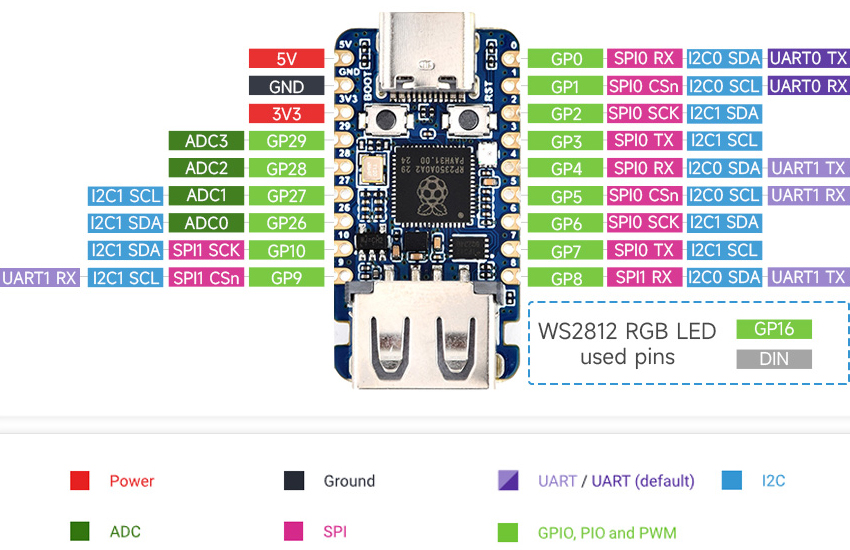

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• RP2350 Datasheet

Shipping List

• 1 x Wave RP2350A USB Mini Dev Board – 150MHz
