Wave DP83848 ETH Test Board

  • Product Code: W4141
  • Location: U147
  • Availability: In Stock
  • R125.00 (price excl. VAT)


Wave DP83848 ETH Test Board

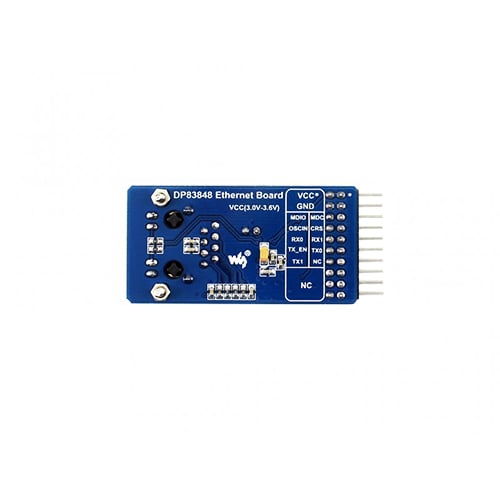

The DP83848 Ethernet Board is an accessory board which includes an onboard Ethernet Physical Layer Transceiver DP83848, RJ45 connector, and control interface.

W4141_004

Dimensions

W4141_005

Quick Spec

  • Multiple Temperature Range from –40°C to 105°C
  • Low-Power 3.3-V, 0.18-µm CMOS Technology
  • Low-Power Consumption < 270 mW Typical
  • 3.3-V MAC Interface
  • Auto-MDIX for 10/100 Mb/s
  • Energy Detection Mode
  • 25-MHz Clock Output
  • SNI Interface (Configurable)
  • RMII Rev. 1.2 Interface (Configurable)
  • MII Serial Management Interface (MDC and MDIO)
  • IEEE 802.3 MII
  • IEEE 802.3 Auto-Negotiation and Parallel Detection
  • IEEE 802.3 ENDEC, 10BASE-T Transceivers and Filters
  • IEEE 802.3 PCS, 100BASE-TX Transceivers and Filters
  • IEEE 1149.1 JTAG
  • Integrated ANSI X3.263 Compliant TP-PMD; Physical Sub-Layer with Adaptive Equalization and Baseline Wander Compensation
  • Error-Free Operation up to 150 Meters
  • Programmable LED Support for Link, 10/100 Mb/s Mode, Activity, Duplex and Collision Detect
  • Single Register Access for Complete PHY Status
  • 10/100 Mb/s Packet BIST (Built in Self Test)

Resources

Shipping List

  • 1 X Wave DP83848 ETH Test Board


Tags: wave, dp83848, eth, ethernet, test, board
