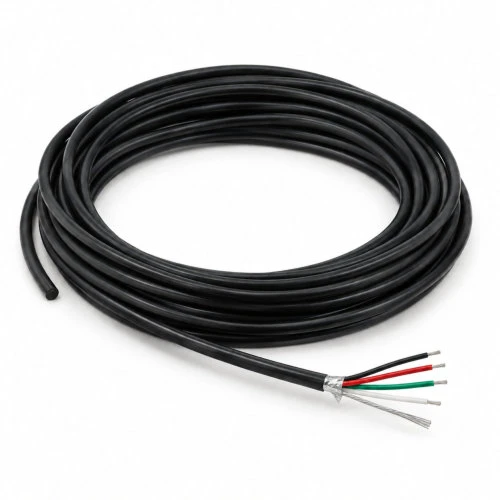

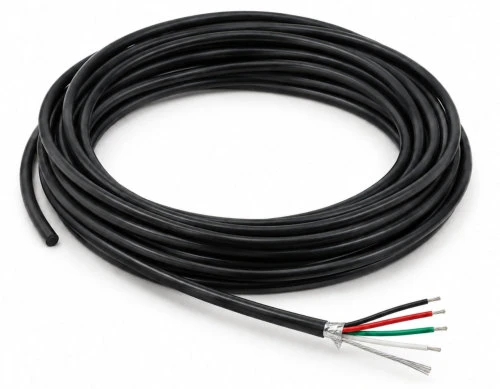

Wire 4 way 26 and 28 AWG Shielded
This four-core cable incorporates two 26 AWG conductors (red and black)and two 28 AWG conductors (white and green) an additional drain wire accompanies the aluminium foil shield. Flexible PVC insulation encloses the conductors, with construction specified according to IEC 60227-5:2003
Quick Spec
- Wire Type: 4 Cores with Shield Wire
- Outer Diameter (OD): 3mm
- Shielding: Yes (Foil + drain wire
- Red and Black: 26 AWG (10 Strands 0.1mm)
- Green and White: 28Awg (6 Strands 0.1mm)
- Max Voltage: 300V
- Insulation Material: PVC IEC 60227-5:2003
- Typical Application: USB Related, Signal, Sensors
Shiping List
- 1 x Wire 4 way 26 and 28 AWG Shielded

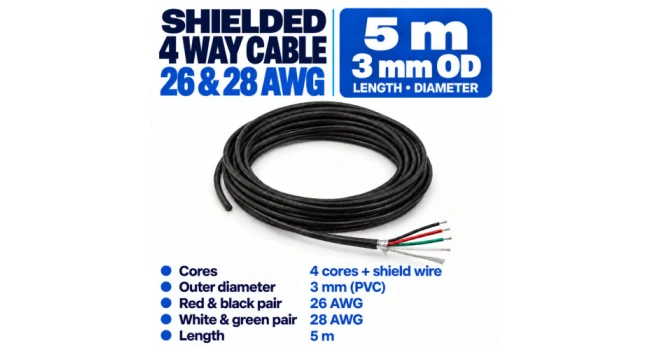

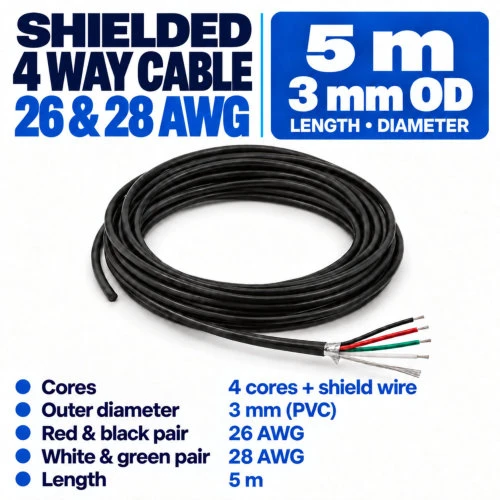

Wire 4 way 26 and 28 AWG Shielded 5m
- Product Code: WIRE-4P-2628SWG
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R36.00 (Inc Tax: R41.40)
