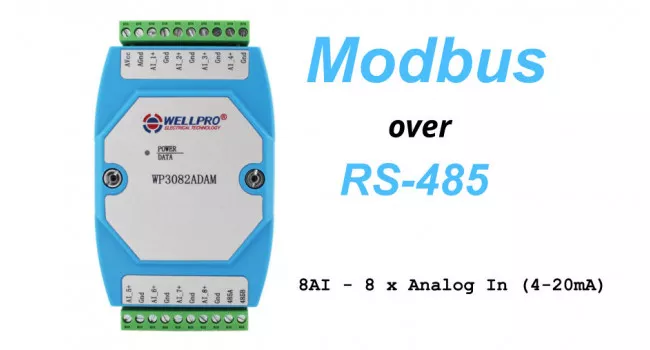

WELLPRO RS-485 MODBUS RTU, 8 x Analog In (4-20mA)

WELLPRO range of RS-485 Modbus devices is great for signal collection and control of industrial devices and make use of the RS485 MODBUS RTU communication protocol

WP3082ADAM Signal Capability

  • 8AI - 8 x Analog Inputs (0-20mA / 4-20mA)

Quick Spec

  • Standard Modbus RTU Communication Protocol
  • Ext Power: DC 9V-30V/2W
  • Analog input accuracy: ±0.02mA
  • Working Temperature: -20 - 70°C
  • Isolation protect: 1500VDC
  • Installation method: Standard DIN slide rail or screw
  • Dimension: 125×73×35mm
WP3082-ADAM-PIN

Pin Functions

  • AVcc : External power supply input positive
  • AGnd : External power supply input negative / Power ground
  • AI_1+: Current input channel 1 positive
  • Gnd : Current input channel negative / Common analog ground
  • AI_2+ : Current input channel 2 positive
  • Gnd: Current input channel negative / Common analog ground
  • AI_3+: Current input channel 3 positive
  • Gnd: Current input channel negative / Common analog ground
  • AI_4+: Current input channel 4 positive
  • Gnd : Current input channel negative / Common analog ground
  • AI_5+: Current input channel 5 positive
  • Gnd: Current input channel negative / Common analog ground
  • AI_6+: Current input channel 6 positive
  • Gnd: Current input channel negative / Common analog ground
  • AI_7+: Current input channel 7 positive
  • Gnd : Current input channel negative / Common analog ground
  • AI_8+ : Current input channel 8 positive
  • Gnd : current input channel negative / Common analog ground
  • 485B : RS485 signal B-
  • 485A : RS485 signal A+

Resources

ModelDigital InDigital OutAnalog In (4-20mA)Analog Out (4-20mA)Relay Out18B20
WP8024ADAM
8 X DI---4 x RO-
WP8026ADAM
16 x DI-----
WP8028ADAM
8 x DI8 x DO----
WP3082ADAM
--8 x AI---
WP9038ADAM
4 x DI4 x DO6 x AI---
WP3076ADAM
---1 x AO--
WP3078ADAM
---3 x A0--
WP3066ADAM
-----8 X DS18B20

Shipping List

  • 1 x WELLPRO RS-485 MODBUS RTU, 8 x Analog Inputs


WELLPRO RS-485 MODBUS RTU, 8 x Analog In (4-20mA)

  • Brand: WELLPRO
  • Product Code: WP3082ADAM
  • Weight: 0.159kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R848.00 (Inc Tax: R975.20)
