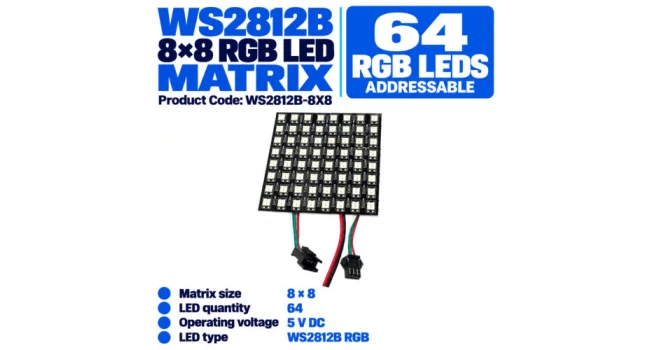

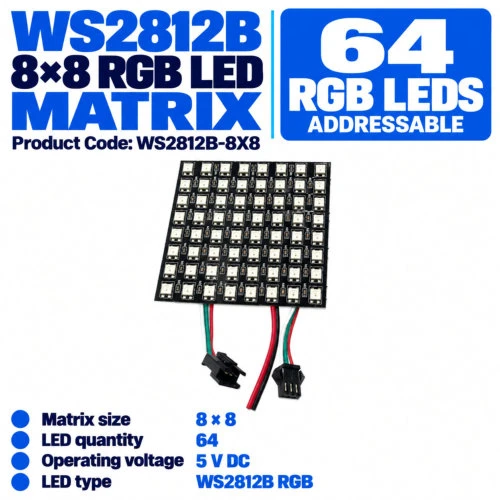

WS2812B 8X8 RGB LED Matrix 5V
WS2812B 8X8 RGB LED Matrix with 64 individually addressable LEDs, 5V operation, vivid full-colour output and flexible control for displays, signage, lighting effects and Arduino projects.
Quick Spec
- LED Type: WS2812B addressable RGB
- Matrix Size: 8 x 8 LEDs
- Total LEDs: 64 LEDs
- Operating Voltage: 5V DC
- Colour Output: Full RGB colour
- Board Type: Flexible LED matrix panel
Arduino Uno 5V WS2812B 8x8 Matrix Example
It lights one LED at a time on the 8×8 WS2812B matrix.
The red LED moves from LED 0 to 63, then repeats.
matrix.clear()turns all LEDs off.setPixelColor()makes one LED red.show()updates the matrix.delay(100)waits 100 ms between steps.
#include <Adafruit_NeoPixel.h>
#define LED_PIN 6
#define NUM_LEDS 64
Adafruit_NeoPixel matrix(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);
void setup() {
matrix.begin();
matrix.setBrightness(50);
matrix.show();
}
void loop() {
for (int i = 0; i < NUM_LEDS; i++) {
matrix.clear();
matrix.setPixelColor(i, matrix.Color(255, 0, 0));
matrix.show();
delay(100);
}
}Shipping List
- 1 x WS2812B 8X8 RGB LED Matrix 5V
WS2812B 8X8 RGB LED Matrix 5V
- Brand: Generic
- Product Code: WS2812B-8X8
- Weight: 0.02kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | DD155 |
| Stellenbosch | In Stock | B0335 |
We ship free of charge between branches to complete your order.
-
R78.00 (Inc Tax: R89.70)
