TPA3116D2 Stereo Amplifier 2x120W with Bluetooth
Introducing the TPA3116D2 Stereo Amplifier 2x120W with Bluetooth, a powerful audio solution for your entertainment system or DIY projects. Featuring the TPA3116D2 digital power amplifier chip, it operates efficiently in Class D mode, ensuring exceptional sound quality with over 90% efficiency. Boasting a high-level modulation system, it reduces component quantity for reliability. Self-protection circuitry prevents over-voltage, under-voltage, overheating, DC detection, and short circuits. Equipped with Bluetooth, enjoy wireless streaming within a 10-meter range.
Compact at 98mm x 79mm x 16mm, it's suitable for various setups. With dual-channel output and support for AAC, MPA, and SBC formats, it delivers immersive sound with minimal distortion. Its temperature range of -40°C to +80°C ensures reliable operation. Whether upgrading a home theater or building a custom speaker, this amplifier offers dynamic performance in a compact package.
Quick Spec
- Chipset: TPA3116D2
- Operating Voltage: 12-24V (<3A)
- Channel: Dual channel
- Output Power: 2 x 120W
- Efficiency Ratio: > 90%
- Bluetooth: 4.0
- Bluetooth Modulation Mode: GFSK/ 4 DQPSK, 8DPSK
- Support Bluetooth Protocol: HFP V1.6, HSP V1.2, A2DP V1.2, AVRCP V1.4, DI V1.3
- Max. Distance: 10M
- Transmission Power: Support CLASS1 / CLASS2 / CLASS3 8dBm Max.
- Sensitivity: -80dBm Less than 0.1%BER
- Frequency Range: 2.4GHz~2.480GHz
- External Interface: PIO, SPI, Audio Input/Output, PCM, USB
- Audio Support: AAC, MPA, SBC, stereo
- Distortion Factor: ≤ 0.1%
- Operating Temperature: -40°C to +80°C
- Dimensions: 98 x 79 x 16mm

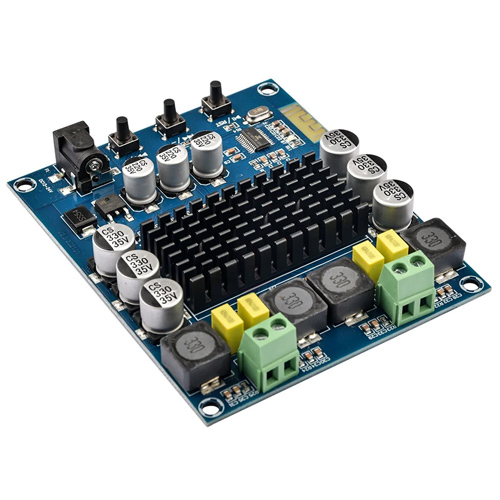

Layout
Shipping List
- 1 x TPA3116D2 Stereo Amplifier 2x120W with Bluetooth
TPA3116D2 Stereo Amplifier 2x120W with Bluetooth
- Brand: Generic
- Product Code: XH-M548
- Weight: 0.08kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UH076 |
| Stellenbosch | In Stock | Z0003 |
We ship free of charge between branches to complete your order.
-
R229.00 (Inc Tax: R263.35)
