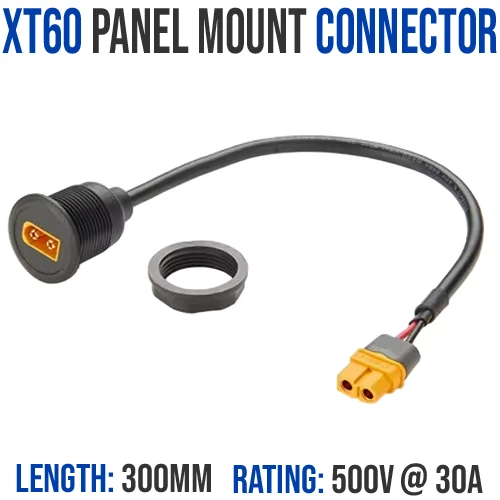

XT60 Panel Mount Connector - 30cm
The XT60 Panel Mount Connector is a high-quality pass-through adapter designed for secure and efficient power connections. Featuring a male XT60 panel mount on one end and a female XT60 connector on the other, it ensures a reliable, low-resistance connection for high-current applications. The gold-plated spring connectors minimize contact resistance (0.55mΩ), while the PVC shell provides durability and insulation. This round, back-lock panel mount design is easy to install, requiring a 22mm cutout for a secure fit.
With a rated voltage of 500V DC and a continuous current capacity of 30A (momentary peak of 60A), this connector is ideal for RC applications, battery packs, power distribution systems, and DIY electronics projects. CE and ROHS compliant, it operates within a temperature range of -20°C to 120°C, ensuring performance under demanding conditions.
Quick Spec
- Connector A: XT60 Male Panel Mount
- Connector B: XT60 Female End
- Cable Length: 30cm
- Shell Material: PVC
- Cutout Size Recommended: 22mm
- Panel Type: Pass-through adapter
- Mount Type: Round shape, back lock
- Rated Voltage: DC 500V
- Rated Current: 30A (Max Momentary: 60A)
- Contacts: Gold-plated spring connectors
- Contact Resistance: 0.55mΩ
- Temperature Range: -20°C - +120°C
- Certification: CE, ROHS Compliant
Dimensions
Shipping List
- 1 x XT60 Panel Mount Connector - 30cm
XT60 Panel Mount Connector - 30cm
- Brand: Generic
- Product Code: XT60-PAN-03
- Weight: 0.042kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UA036 |
| Stellenbosch | In Stock | Z3026 |
We ship free of charge between branches to complete your order.
-
R129.00 (Inc Tax: R148.35)
