Liquid Flow Meter, Range 1-25L/min, Port Size 1/2inch. Supply 5-24V
Measure liquid/water flow for your solar, computer cooling, or gardening project using this handy basic flow meter. This sensor sit in line with your water line, and uses a pinwheel sensor to measure how much liquid has moved through it. The pinwheel has a little magnet attached, and there's a hall effect magnetic sensor on the other side of the plastic tube that can measure how many spins the pinwheel has made through the plastic wall.
Quick Spec
- Measure Range: 1-25L/min
- Supply Range: 5-24 DC
- In / Out Port Size: 1/2 inch
- Max Pressure: 1.2MPa
- Yellow Wire : Hall effect pulse output
- Maximum output current : 15mA (5V)
Flow Sensors we stock
| Model | Port Size | Flow Rate |
| FS400A-G1 | 1" (25.4mm) | 1-60L/min |
| YF-S201 | 1/2" (12.7mm) | 1-25L/min |
| YF-S401 | 1/8" (6.35mm) | 0.3-6L/min |

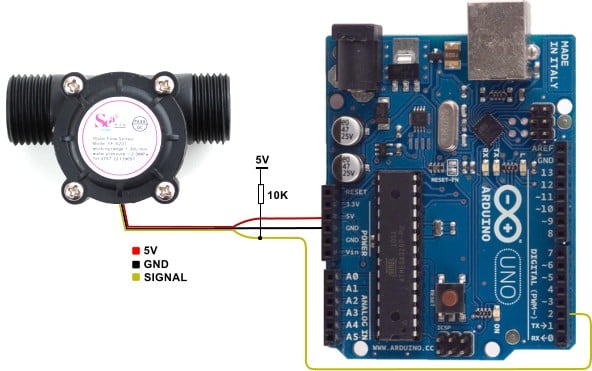

Application Circuit
Code Example
Resources
- Adafruit tutorial
- Arduino Tutorial with LCD display by David Sandor
- Practical Arduino - Water flow gauge example
Shipping List
- 1 x Liquid Flow Meter - Plastic 1/2" NPT Threaded
Liquid Flow Meter, Range 1-25L/min, Port Size 1/2inch, Supply 5-24V
- Brand: Generic
- Product Code: YF-S201
- Weight: 0.05kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R72.00 (Inc Tax: R82.80)
