Mini RS232 to TTL Serial Converter Module, Supply 3-5V
The RS232 to TTL 5V Signal Converter Module is a professional module for projects requiring PC/Laptop RS232 interface to 5V TTL logic. This module converts signals between RS232 voltage levels and TTL voltage levels. It is bi-directional, where TTL signals are converted to RS232 levels and RS232 levels are converted to TTL levels. It is ideal for use in pc interfacing, microcontroller based projects, robotics, or for experimental and educational purposes.
Quick Spec
- Chip Model: MAX232CSE
- Protocol: RS232
- Operating Voltage: 3 ~ 5V
- Max. Baud Rate: >120kbps
- Operation: Full Duplex
- Receiver Hysteresis: 300mV
- Transceiver: 2 (1 TTL -> RS232 + 1 TTL <- RS232)
- Operating Temperature: -40 ~ +85°C
- Dimensions: 16.22 x 10.3 x 3.5mm
- Net Weight: 2g

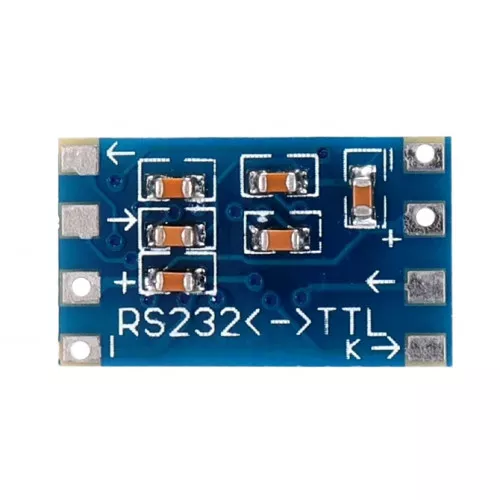

Board Layout
Wiring Diagram
Pinout
- – (0V)
- + (VCC 3.0~5.5V)
- TTL-TXD
- TTL-RXD
- - (0V)
- + (VCC 3.0~5.5V)
- RS232-RX
- RS232-TX
Resources
Shipping List
- 1 x Mini RS232 to TTL Serial Converter Module, Supply 3-5V
Mini RS232 to TTL Serial Converter Module, Supply 3-5V
- Brand: Generic
- Product Code: MX3232-MOD
- Weight: 0.001kg
- Product Status : Active
