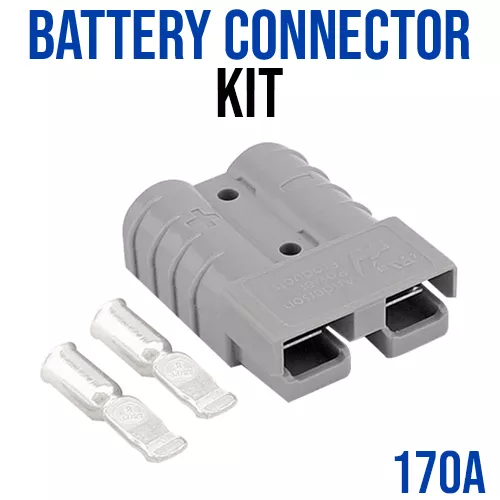

Battery Connector Kit - 170A Anderson Compatible
These battery connectors are ideal for quick and easy connection and disconnection of high current cables in applications such as battery charging, jump starting, welding etc. The connectors are genderless so both sides of the connection are identical. Simply turn one of the connectors upside down and slide them together.
Quick Spec
- Voltage Rating: 600V AC/DC max.
- Current Rating: 170A max. UL rating
- No. Poles: 2
- Connector Housing Material: Polycarbonate
- Connector Sprung Tab Material: Stainless steel
- Operating Temperature: -20ºC to 125ºC
Dimensions
Resources
Shipping List
- 1 x Battery Connector Housing (HY120-600V)
- 2 x Metal Contacts
Battery Connector Kit - 170A Anderson Compatible
- Brand: Generic
- Product Code: SB170-GRE
- Weight: 0.105kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R125.00 (Inc Tax: R143.75)
