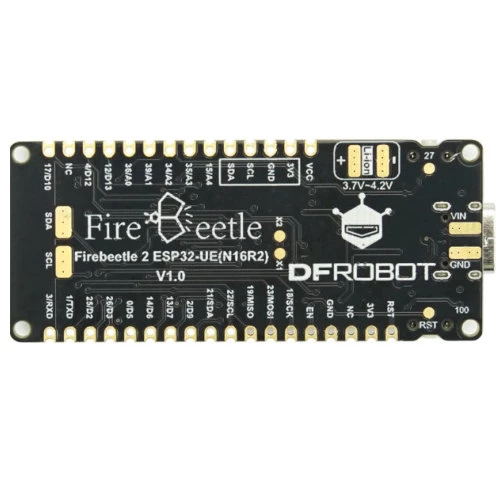

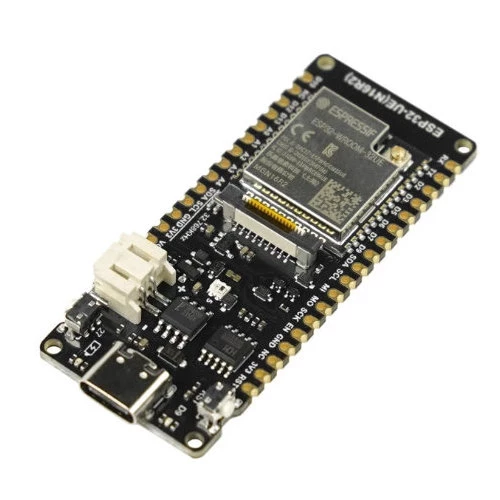

>DF Robot FireBeetle 2 ESP32-UE 16MB Flash IoT Board (N16R2)
The FireBeetle 2 ESP32-UE is an IoT microcontroller based on the ESP32-WROOM-32UE-N16R2 module, featuring a connector for an ext WiFi/Bluetooth antenna. It is equipped with a Tensilica LX6 dual-core processor (240MHz), 16MB Flash, and 2MB PSRAM. It supports dual-mode communication via 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (BR/EDR/BLE). The board operates on a 5V DC (USB-C) or 3.7V Li-ion battery, with automatic power switching and charging. Peripherals include 17 digital pins, 11 analog pins, 3x UART, 1x I2C, 1x SPI, and an onboard GDI for display connections. It is programmable with Arduino IDE, ESP-IDF, and MicroPython.
Quick Spec
- SKU: DF Robot DFR1140 (FireBeetle 2 ESP32-UE (N16R2) IoT Board)
- MCU module: ESP32-WROOM-32UE-N16R2
- CPU: Tensilica LX6 dual-core, up to 240MHz
- Memory: 16MB Flash + 2MB PSRAM
- Wireless: 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (BR/EDR/BLE)
- Antenna support: external Wi-Fi/Bluetooth antenna connector
- Power inputs: USB-C 5V, 3.7V Li-ion battery (PH2.0), or 5V via VCC pin
- Power features: onboard Li-ion charging with automatic power switching
- I/O interfaces: 17 digital, 11 analog, 3× UART, I2C, SPI, I2S, and 2× DAC
- Extras: GDI display interface
- Compact 25.4 × 60 mm form factor
- Supports Arduino IDE, ESP-IDF, and MicroPython

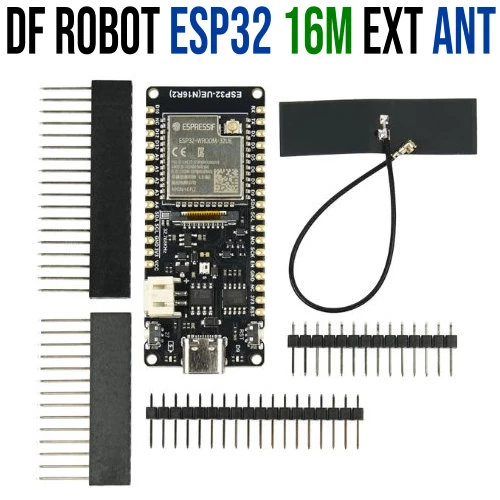

Shipping List
- 1 x DF Robot FireBeetle 2 ESP32-UE 16MB Flash IoT Board
- 1 X 2.4GHz WiFi and Bluetooth antenna
- 1 X 18pin-2.54mm Pitch Pin
- 1 X 18pin-2.54mm Pitch Pin Female
- 1 X 14pin-2.54mm Pitch Pin
- 1 X 14pin-2.54mm Pitch Pin Female
DF Robot FireBeetle 2 ESP32-UE 16MB Flash IoT Board
- Brand: DF Robot
- Product Code: DFR1140
- Weight: 0.023kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R248.00 (Inc Tax: R285.20)
Tags: fireBeetle 2, ESP32-UE, 16MB Flash
