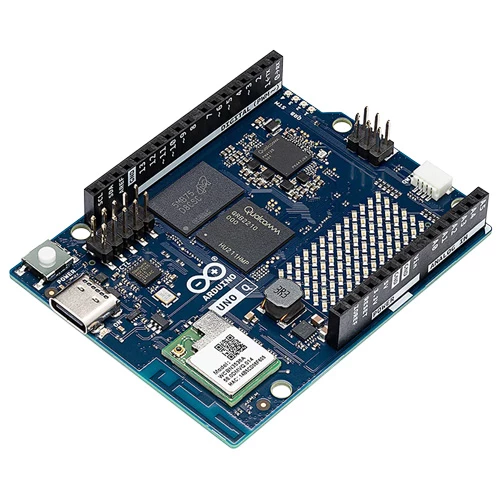

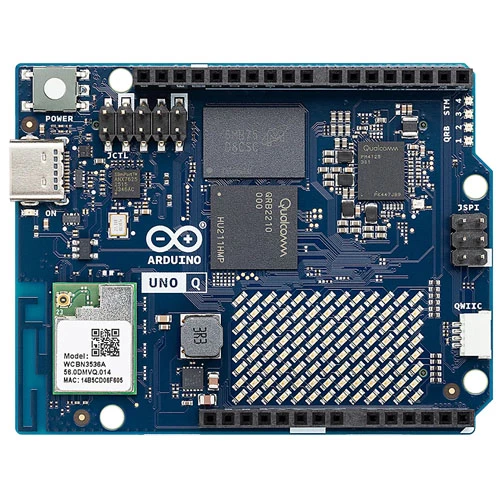

Arduino UNO Q 4GB Development Board
The Arduino UNO Q 4GB Dev Board from DF Robot is a powerful hybrid development platform that combines the flexibility of a single-board computer with the real-time capabilities of a microcontroller. Featuring a Qualcomm Dragonwing QRB2210 microprocessor running Linux Debian alongside an STM32U585 MCU, it enables developers to seamlessly build projects ranging from traditional embedded systems to advanced AI-driven applications. This dual-brain architecture allows you to run high-level processes like computer vision and audio analysis while maintaining precise real-time control.
With 4GB RAM and 32GB eMMC storage, the UNO Q is ideal for complex IoT, robotics, and machine learning projects that require multitasking and data processing. It supports the full Arduino ecosystem, including UNO-compatible shields and Qwiic modules, while also offering modern connectivity such as Wi-Fi 5 and Bluetooth 5.1. Combined with Arduino IDE, Python support via Linux, and tools like Arduino App Lab, it provides a streamlined and highly versatile development experience.
Quick Spec

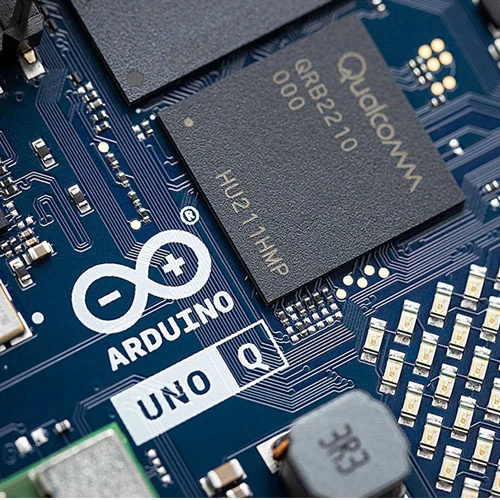

- Microprocessor: Qualcomm Dragonwing QRB2210 (quad-core Cortex-A53 @ 2.0 GHz, Adreno GPU)
- Microcontroller: STM32U585 (Cortex-M33 up to 160 MHz)
- RAM: 4GB LPDDR4
- Storage: 32GB eMMC
- Operating systems: Linux Debian (MPU), Arduino Core on Zephyr OS (MCU)
- Connectivity: Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.1
- Power input: USB-C (5V up to 3A), VIN 7–24V
- USB: USB-C with host/device support and video output
- Interfaces: I2C/I3C, SPI, UART, PWM, CAN, ADC, GPIO, JTAG
- Display & output: USB-C video, MIPI DSI support
- Audio: Mic input, headphone/line output
- Expansion: UNO headers, Qwiic connector (3.3V I2C)
- Onboard features: 8×13 LED matrix, 4× RGB LEDs, user button
- Dimensions: 68.85 × 53.34 mm (UNO form factor)
- Software support: Arduino IDE, Arduino Cloud, Python, Docker
Product Video

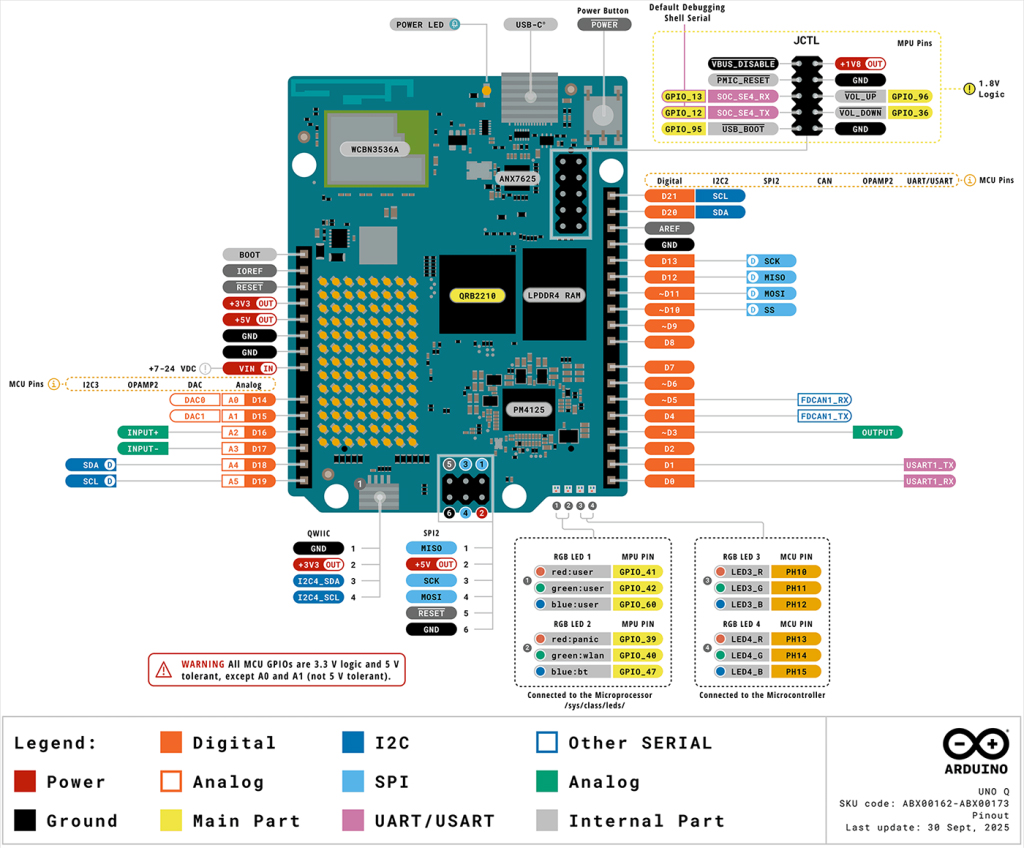

Pinout
Resources
Shipping List
- 1 x Arduino UNO Q 4GB Development Board
Arduino UNO Q 4GB Development Board
- Brand: Arduino.cc
- Product Code: DFR1256
- Weight: 0.034kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,112.00 (Inc Tax: R1,278.80)
