• Description

DF Robot RGB LED Strip Driver Shield V2

The DF Robot RGB LED Strip Driver Shield v2 is designed to make controlling 12V RGB LED strips with Arduino simple, efficient, and reliable. With three high-quality MOSFET channels, it can independently drive LED strips up to 2A per channel, while also supplying a stable 5V power source for your Arduino when powered from a 12V input.



This updated version features an optimized fuse design for safer operation and upgraded terminal block connectors for easier, more secure power wiring. It includes an infrared receiver for remote control capability, supports long-pin headers for durable connections, and only requires three PWM pins and one digital pin to operate. Perfect for creating light-interactive projects with minimal setup.

Quick Spec

• Compatible with Arduino Uno, Mega, Romeo, and more
• Supports 12V RGB LED Strip (Common Anode)
• Recommended power: 72W (2A per channel)
• Max capacity: 5m RGB LED strip at full brightness
• IR remote control supported (D4 input pin)
• RGB outputs: D9 (Blue), D10 (Red), D11 (Green)
• Power input: 12V via terminal block
• Onboard fuse protection against overload

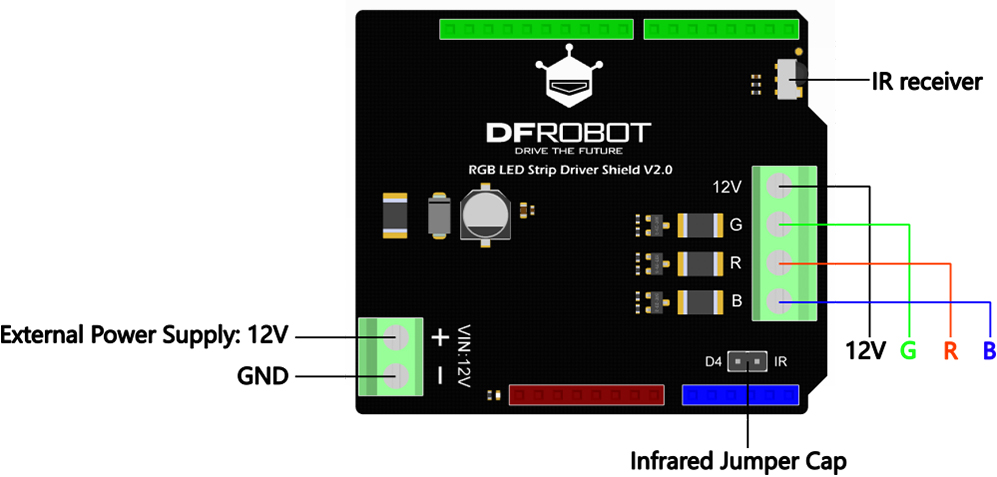

Board Layout

Resources

• Product Page
• Product Wiki
• Schematic

Shipping List

• 1 x DF Robot RGB LED Strip Driver Shield V2

DF Robot RGB LED Strip Driver Shield V2

• Brand: DF Robot
• Product Code: DFR0274
• Weight: 0.035kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	DD015
Stellenbosch	In Stock	115
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R186.00 (Inc Tax: R213.90)
