• Description

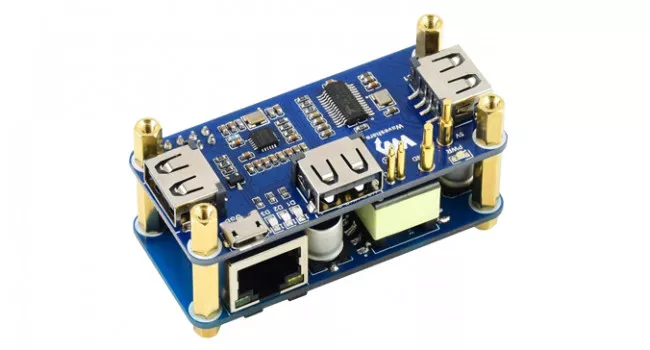

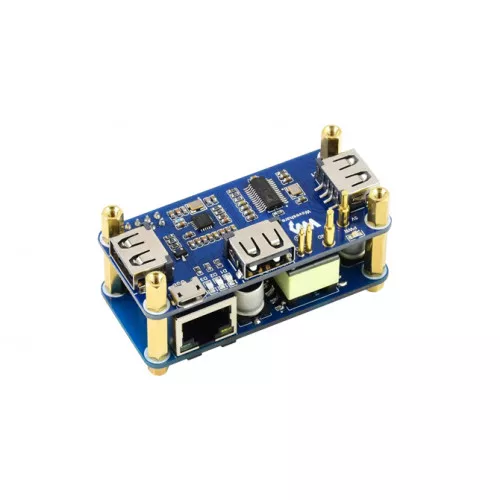

Wave POE/ETH/USB HUB HAT Expansion for Pi Zero

The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.



The boards features are:

• Designed for Raspberry Pi Zero, compatible with Zero series boards
• Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
• PoE (Power over Ethernet) feature, 802.3af-compliant
• Fully isolated SMPS (Switch Mode Power Supply)
• 3x extended USB ports, compatible with USB 2.0 / 1.1

Quick Spec

• POE Power Input: 37V ~ 57V DC
• Power Output: 5V 2.5A DC
• Network Standard: IEEE 802.3af-compliant PoE
• Dimensions: 23.1 × 65mm
• Net Weight: 83g

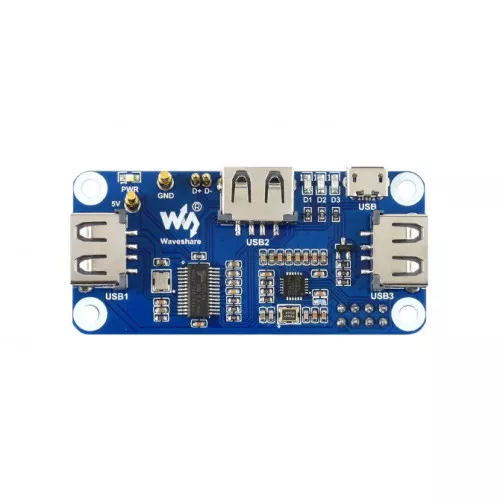

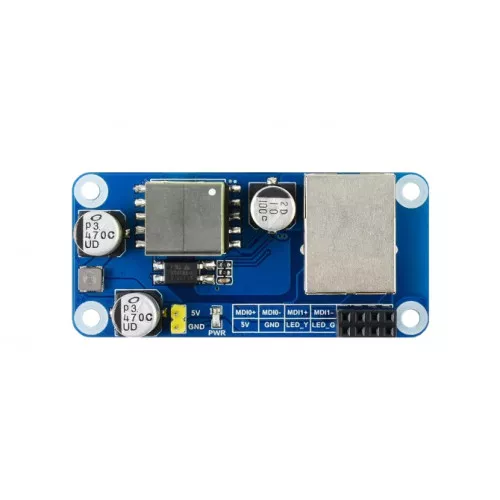

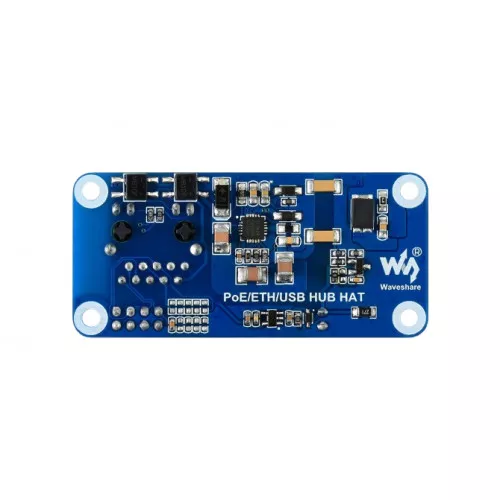

Board Layout

Resources

• Product Page
• Product Wiki
• USB HUB Schematic
• POE Schematic

Shipping List

• 1 x PoE/ETH/USB HUB HAT
• 1 x USB HUB Board
• 1 x Screws Pack
• 1 x Screwdriver

Wave POE/ETH/USB HUB HAT for Pi Zero

• Brand: Waveshare
• Product Code: W19635
• Weight: 0.083kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R388.00 (Inc Tax: R446.20)
