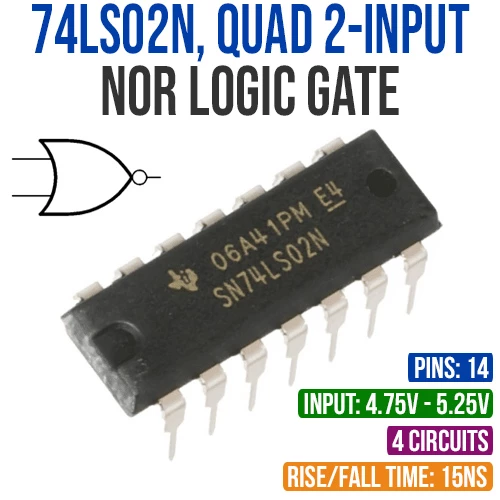

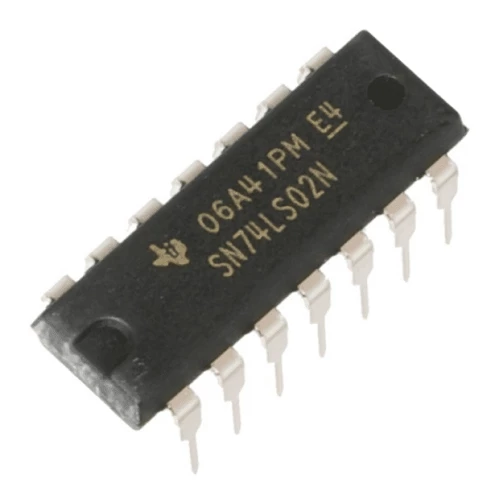

74LS02 Qud 2-Input NOR Logic Gate IC
The 74LS02 Quad 2-Input NOR Gate IC features four independent NOR gates, each with two inputs, making it a fundamental component in digital logic circuits. Built using CMOS technology, it ensures fast switching speeds, low power consumption, and high noise immunity, making it compatible with LS-TTL logic families. The IC is designed for seamless interfacing with microcontrollers and other logic devices without the need for additional encoders or decoders. Its internal clamp diodes provide ESD protection, ensuring reliability in various electronic applications.
Quick Spec
- Number of Circuits: 4 NOR gates
- Logic Type: Bipolar
- Logic Family: LS
- Operating Voltage: 4.75V – 5.25V
- Maximum Supply Voltage: 7V
- Maximum Output Current per Gate: 8mA
- ESD Protection: 3.5kV
- Rise/Fall Time: 15ns (typical)
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -65°C to 150°C
- Package Type: 14-pin PDIP
Pinout
Resources
Shipping List
- 1 x 74LS02 Qud 2-Input NOR Logic Gate IC
74LS02 Qud 2-Input NOR Logic Gate IC
- Brand: Generic
- Product Code: 74LS02
- Weight: 0.002kg
- Product Status : Active
