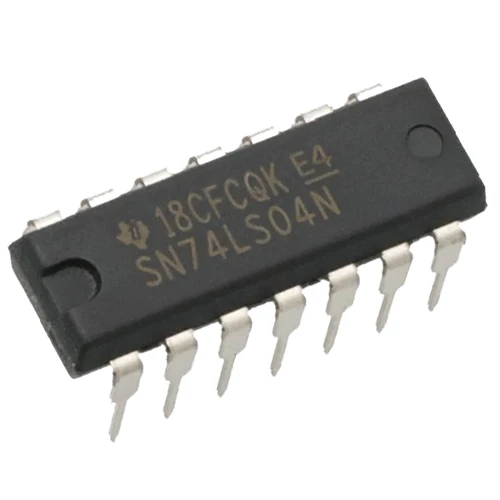

74LS04 Hex Inverter IC NOT Logic Gate IC
he 74LS04 Hex Inverter IC is a fundamental component in digital electronics, featuring six independent NOT gates that invert input signals. It operates within a voltage range of 4.75V to 5.25V and is commonly used in logic-level signal processing, waveform inversion, and clock signal generation. This IC is designed for high-speed performance while maintaining low power consumption, making it ideal for various applications in digital circuits.
Quick Spec
- Number of Circuits: 6
- Logic Type: Bipolar
- Logic Family: LS
- Package / Case: SO-14
- Supply Voltage: 4.75V – 5.25V
- High-Level Output Current: -0.4 mA
- Low-Level Output Current: 8 mA
- Operating Temperature: 0°C - +70°C
- Propagation Delay Time: Varies by circuit load
Pinout
Resources
Shipping List
- 1 x 74LS04 Hex Inverter IC NOT Logic Gate IC
74LS04 Hex Inverter IC NOT Logic Gate IC
- Brand: Generic
- Product Code: 74LS04
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | F129-04 |
| Stellenbosch | In Stock | B0141 |
We ship free of charge between branches to complete your order.
-
R12.00 (Inc Tax: R13.80)
