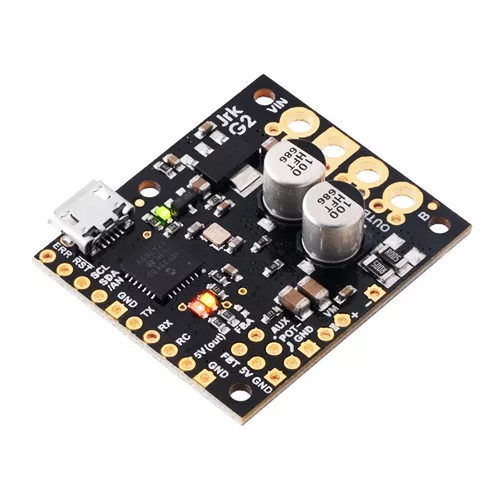

JRK G2 24V13 USB Motor Controller + Feed

This powerful motor controller makes closed-loop speed or position (but not both!) control of a brushed DC motor easy, with quick configuration over USB using our free software. It supports five control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), and hobby radio control (RC). This version offers a wide 6.5 V to 40 V operating range and can deliver continuous output currents up to 13 A without a heat sink.



With integrated support for analog voltage or tachometer (frequency) feedback, the second-generation G2 family of Jrk motor controllers makes it easy to add closed-loop control of speed or position (but not both!) of a single brushed DC motor to a variety of projects. These versatile, general-purpose modules support five different control interfaces: USB for direct connection to a computer, TTL serial and I2C for use with a microcontroller, RC hobby servo pulses for use in an RC system, and analog voltages for use with a potentiometer or analog joystick. They also offer many settings that can be configured using the free configuration software utility for Windows, Linux, and macOS. This software simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB (a micro-B USB cable is required to connect the Jrk G2 to a computer).

Quick Spec

• Easy open-loop or closed-loop control of one brushed DC motor
• A variety of control interfaces:
• USB for direct connection to a computer
• TTL serial operating at 5 V for use with a microcontroller
• I2C for use with a microcontroller
• RC hobby servo pulses for use in an RC system
• Analog voltage for use with a potentiometer or analog joystick
• Feedback options:
• Analog voltage (0 V to 5 V), for making a closed-loop servo system
• Frequency, for closed-loop speed control using pulse counting (for higher-frequency feedback) or pulse timing (for lower-frequency feedback)
• None, for open-loop speed control
• Note: the Jrk does not support using quadrature encoders for position control
• Ultrasonic 20 kHz PWM for quieter operation (can be configured to use 5 kHz instead)
• Simple configuration and calibration over USB with free configuration software utility (for Windows, Linux, and macOS)
• Configurable parameters include:
• PID period and PID coefficients (feedback tuning parameters)
• Maximum current
• Maximum duty cycle
• Maximum acceleration and deceleration
• Error response
• Input calibration (learning) for analog and RC control
• Optional CRC error detection eliminates communication errors caused by noise or software faults
• Reversed-power protection
• Field-upgradeable firmware
• Optional feedback potentiometer disconnect detection

Dimensions

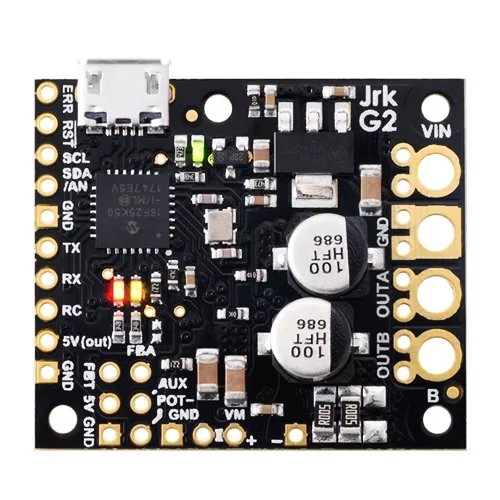

Pinout

Resources

• Product Page
• JRK G2 Motor Controller User’s Guide
• Jrk G2 library for Arduino
• Jrk G2 software source code
• Driver Downloads & Additional Documentation

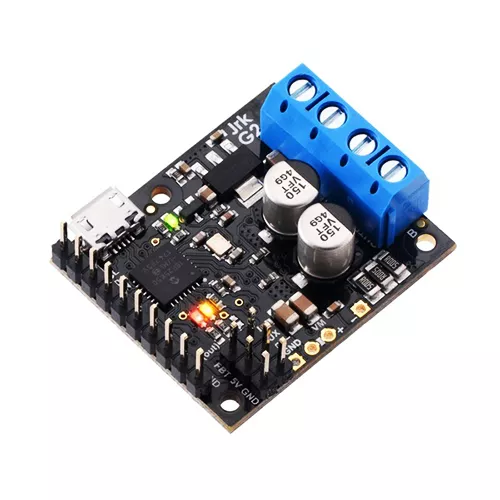

Shipping List

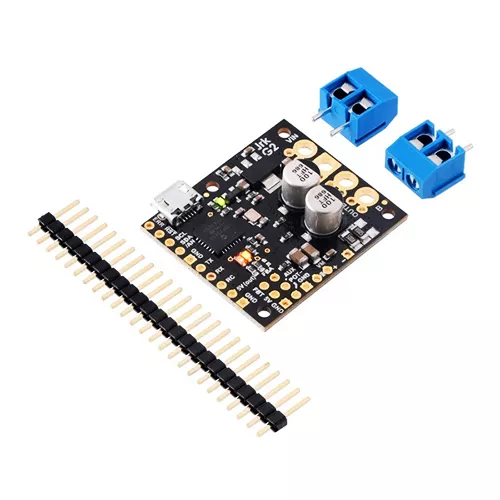

• 1 X JRK G2 24V13 USB Motor Controller + Feed
• 1 X 25 Pin Header
• 2 X 2-way Terminal
