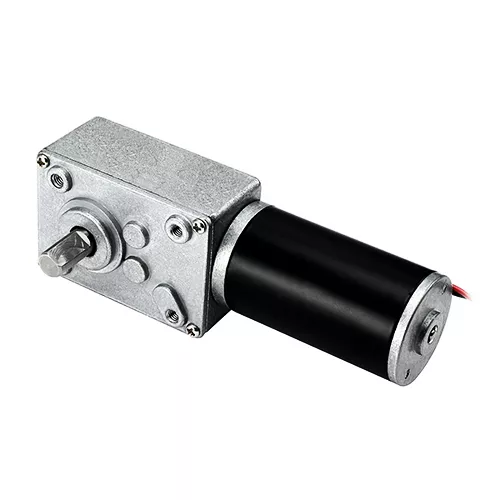

Worm Gear Motor, 4058GW Series, 80RPM, 12V
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated. This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 12V and will achieve 80RPM.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.
Quick Spec
- Voltage: DC 12V
- No load speed: 80r/min
- Working Current: 0.4A
- Working Temperature: -20oC~+80oC
Dimensions
Shipping List
- 1 X Worm Gear Motor, 4058GW Series, 80RPM, 12V
Worm Gear Motor, 4058GW Series, 80RPM, 12V
- Brand: Generic
- Product Code: 4058GW-080-12V
- Weight: 0.352kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R378.00 (Inc Tax: R434.70)
