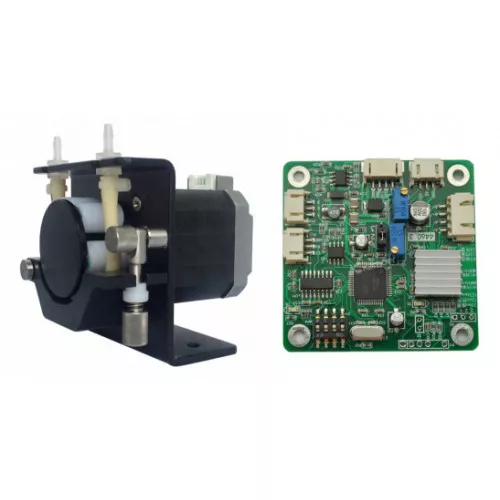

Precision Peristaltic Pump + Intelligent Stepper Controller

This peristaltic pump and intelligent stepper controller offer advance control of liquids. The 6 roller pump features a flexible tube permits the easy flow of solids without abrasion or contaminating the liquid. The stepper motor controller can be controlled via Analog Input (Potentiometer), RS232 and RS485 signals.

Quick Spec

Pump Specification

• Flow Rate : 4-350ml/min
• Pump Type: 6 Roller design
• Tube Material: Neoprene tubing
• Tube Lifetime : 6000H

Controller Specification

• Control Signals, Potentiometer, RS232, RS485
• Board Size: 61 x 61mm

Connector Functions

• P1 - Stepper Output
• P4 - Potentiometer (default)
• P13 - RS232
• P14 - RS485
• P10 - Power Input 12-24V

External Speed Control Knob (default connection)

1. DIP Switch Settings
• When using speed dial, you need to put all the DIP switch to "ON" position
2. Short Circuit Function Selection Jump Cap
• When using an external knob control, you need to select P3 connected to 2, 3 short hop cap
3. Connect speed control knob P4
4. Connect KAS peristaltic pump Pl
5. Connect the power cord PIO
6. Connect the power; clockwise adjusting VRI knob, the speed increases

Note: When the knob is used for speed control, it is not necessary to connect the communication line.

Built-Speed Knob VRI

1. DIP Switch Settings
• When using speed dial, you need to put all the DIP switch to "ON" position
2. Short Circuit Function Select Jump Cap
• When using the built-in potentiometer speed control knob, you need to select P3 connected to 2, 3 short hop cap
3. Connect the KAS Peristaltic Pump to Pl
4. Connect the power cord PIO

Note: External speed potentiometer P4 without connecting

RS232, RS485 Control Speed, Running

1. Setting the DIP Switch
• When RS232, RS485 control when you need to set the mailing address of 4460.4 driver
• 4 DIP switch BCD code corresponding to the four, I-bit DIP switch for the highest bit, 4-bit DIP switch is the lowest bit.
• DIP address: Ox00-0x0E correspond mailing address OxC0-0xCE

Note: All dial to "ON", the knob for speed control function selection, OxCF address is not available for the mailing address.

2. Connected to the Communication Line
• When you need to use RS232 communication, plug the communication cable into the RS232 communication port P13; when you need to use RS485 communication, plug the communication cable into the RS485 communication port P14.
• RS232 port definition: The terminal next to GND TX RX is corresponding to the definition of RS232 GND TXD RX'D; RS485 port definition: The terminal next to the B G A is corresponding to the definition of RS485 B GNDA(D 4)
3. Connect the KAS peristaltic pump to Pl
4. Connect the power cord PIO
5. Connect the power,send commands to control operation of the pump.

The Current Regulation (factory-adjusted)

1. Current Regulator (current range 0 2A)
• VR2: stepper motor current regulator potentiometer: clockwise to adjust the current increases, the motor torque is increased.
• Generally in the case of easy motor out of step, increase the current (the proposed current as small as possible, the large current , the more heating of motor).

Shipping List

• 1 x Peristaltic Pump - 6 Roller Part No # KCS-SB-N14-6-A
• 1 x Intelligent Stepper Controller Part No # 4460.4
• 1 x Basic Connection Cable Set
