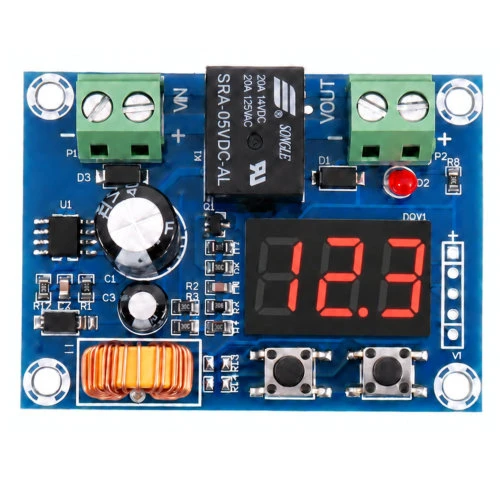

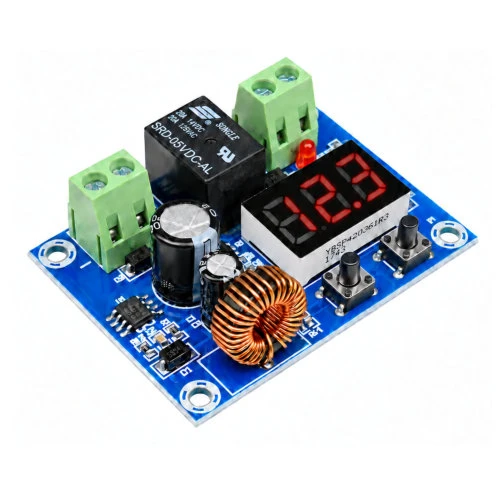

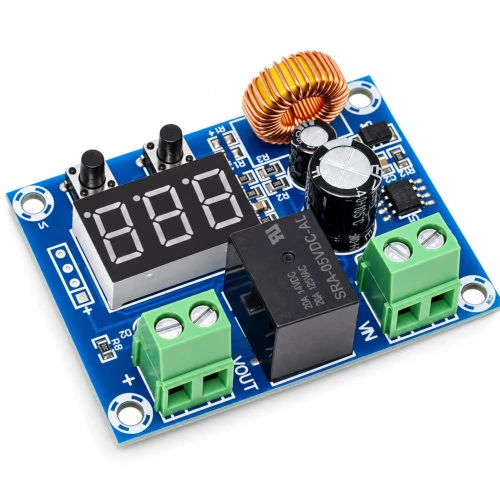

Low Battery Cutout Module 12-36V Max 10A

This XH-M609 battery over discharge protection module is a Power Supply Module/Battery Charger Control Module, With an Input Voltage: DC 12-36V, ST processing chip, stable performance, high integration and durable. Automatic Power-off function and discharge protection can prolong battery life. Suitable for discharging protection of all kinds of batteries.

Quick Spec

• Battery Protection: Disconnects the load when voltage falls too low
• Operating Voltage: 12–36V DC
• Maximum Current: 10A
• Adjustable Thresholds: Set cutoff voltage and automatic reconnection level
• Control Precision: 0.1V
• Dimensions: 57 x 42 x 19 mm

Operating Instructions

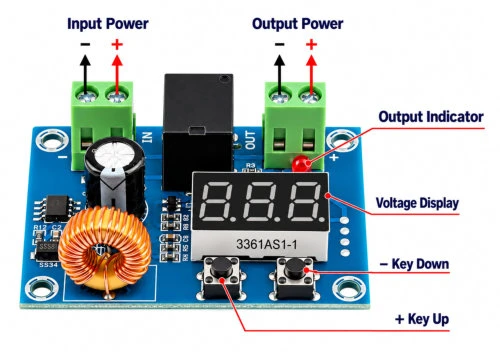

• + key: press once to display the protection value, long press to set the protection value
• – key: press once to display the hysteresis value, long press to set the hysteresis value
• Double-click the + number button, then press + or - button, set the stop voltage value
• Double click on the – number button, then press + or - button, set the hysteresis voltage value
• Long press the + number button, then press + or - button, to calibrate the input voltage display value
• Long press the - number button, then press + or - button, set the latency start value T. At the time of when the output voltage reaches the start value, after the delay T, there is a voltage output, the delay time is 0 ~ 10 minutes, the display category is: 000 or 001 or 005 or 010
• Click the + number button to view the stop voltage value
• Click the - number button to view the hysterisis voltage value

Resources

• XH-M609 Github Repository

Tutorial

Shipping List

• 1 x Low Battery Cutout Module 12-36V

Low Battery Cutout Module 12-36V Max 10A

• Brand: Generic
• Product Code: XH-M609
• Weight: 0.029kg
• Product Status : Active
