DC-DC 5A Adjustable Buck Regulator with Display (VOUT 1.25-36V)
This DC-DC buck converter utilizes the XL4015 switching component and is capable of driving a 5A load while maintaining excellent line and load regulation. The converter offers an adjustable output voltage and high efficiency, making it a superior choice compared to other step down regulators. It operates at a switching frequency of 180kHz at higher input voltages, resulting in a more compact board design that saves space. Additionally, the converter has a toroidal ring inductor, making it a high-power switching module. To further enhance its functionality, a display has been added which can be switched to show either the input or output voltage.
Quick Spec
- Input Voltage: 4 ~ 38V (Max. 38V)
- Output Voltage: 1.25 ~ 36V (adjustable)
- Output Current: 0 ~ 5A (recommended below 4.5A)
- Output Power: recommended use below 75W (add heat sink when more than 50W)
- Operating Temperature: -40 ~ +85°C
- Operating Frequency: 180KHz
- Conversion Efficiency: Up to 96% (based on input and output voltage, current, pressure)
- Voltmeter Range: 0 ~ 40V
- Voltmeter Error: ±0.1V (NOTE: To ensure the accuracy, keep the input above 4.5V)
- Dimensions: 66 x 39 x 18mm

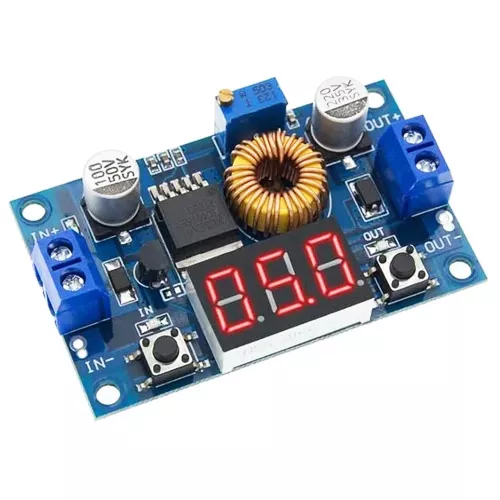

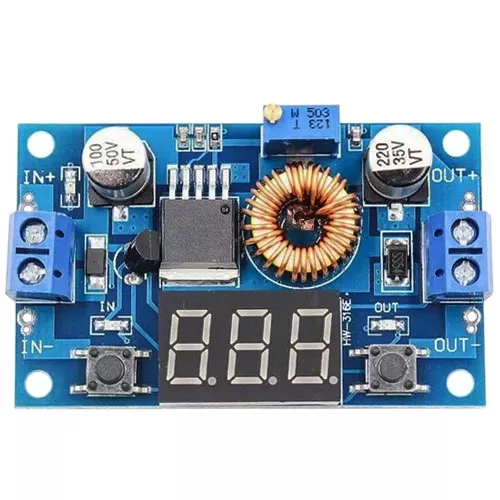

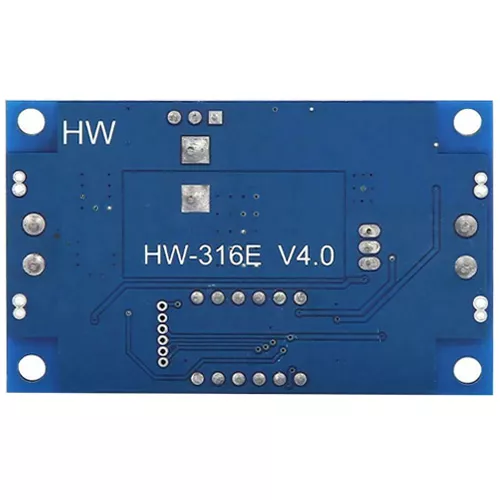

Board Layout
- High Accuracy Potentiometer
- Filter Capacitor
- Output + (1.25-36V)
- Output -
- Output Voltage Indicator
- One-key Switch Input and Output Display
- Output / Input Voltage Display
- One Button to Toggle the Display On / Off
- Inout Voltage Indicator
- Input -
- Input + (4-38V
- Power Indicator
Shipping List
- 1 x DC-DC 5A Adjustable Buck Regulator with Display (VOUT 1.25-36V)
- 1 x Heatsink
- 1 x Standoff Set
DC-DC 5A Adjustable Buck Regulator with Display (VOUT 1.25-36V)
- Brand: Generic
- Product Code: XL4015-DISP
- Weight: 0.031kg
- Product Status : Active
