Magnetometer 3-Axis with Voltage Regulator
A Magnetometer is a instrument used for measuring magnetic forces, especially the earth's magnetism. This module is a carrier/breakout board for the ST LIS3MDL three-axis magnetometer. The sensor provides magnetic field strength measurements with a configurable range of ±4 gauss to ±16 gauss that can be read through a digital I²C or SPI interface. The board includes a 3.3 V voltage regulator and integrated level shifters that allows operation from 2.5 to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.
Quick Spec
- Interface: I²C, SPI2
- Minimum Operating Voltage: 2.5V
- Maximum Operating Voltage: 5.5V
- Measurement Range: ±4, ±8, ±12, or ±16 gauss
- Supply Current: 3 mA
- Size: 10 x 22.86 x 2.54mm
- Weight: 6 g

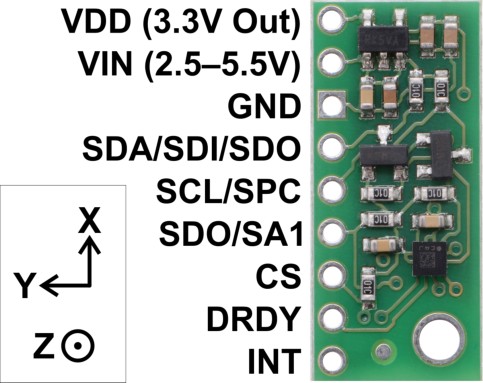

Pinout

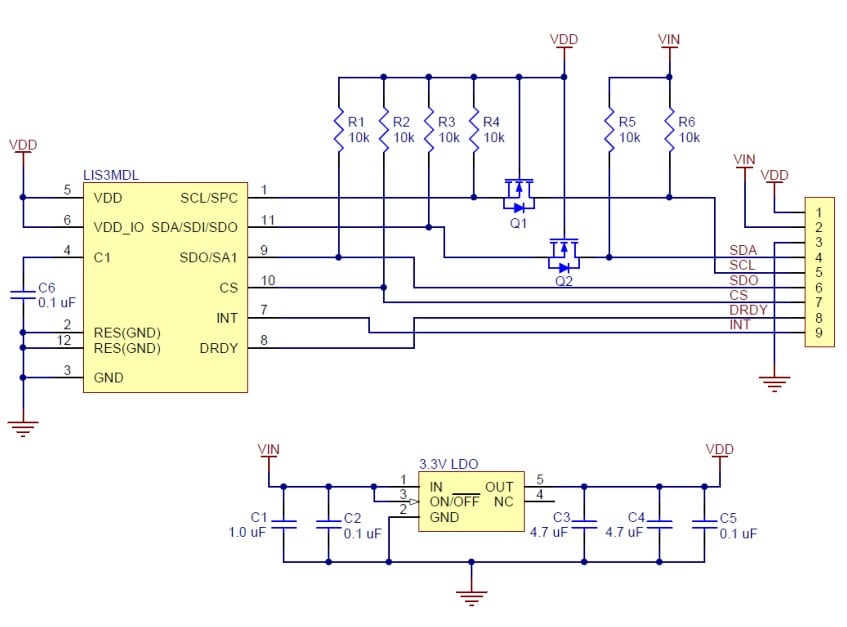

Circuit Diagram
Resources
- Product Page
- Arduino Library
- LIS3MDL Datasheet
- Application Notes
- UM10204 I²C-bus Specification and user Manual
- Schematic
Shipping List
- 1 x Magnetometer 3-Axis with Voltage Regulator
- 1 x Headers Set
Magnetometer 3-Axis with Voltage Regulator
- Brand: Pololu Electronics
- Product Code: 2737
- Weight: 0.003kg
