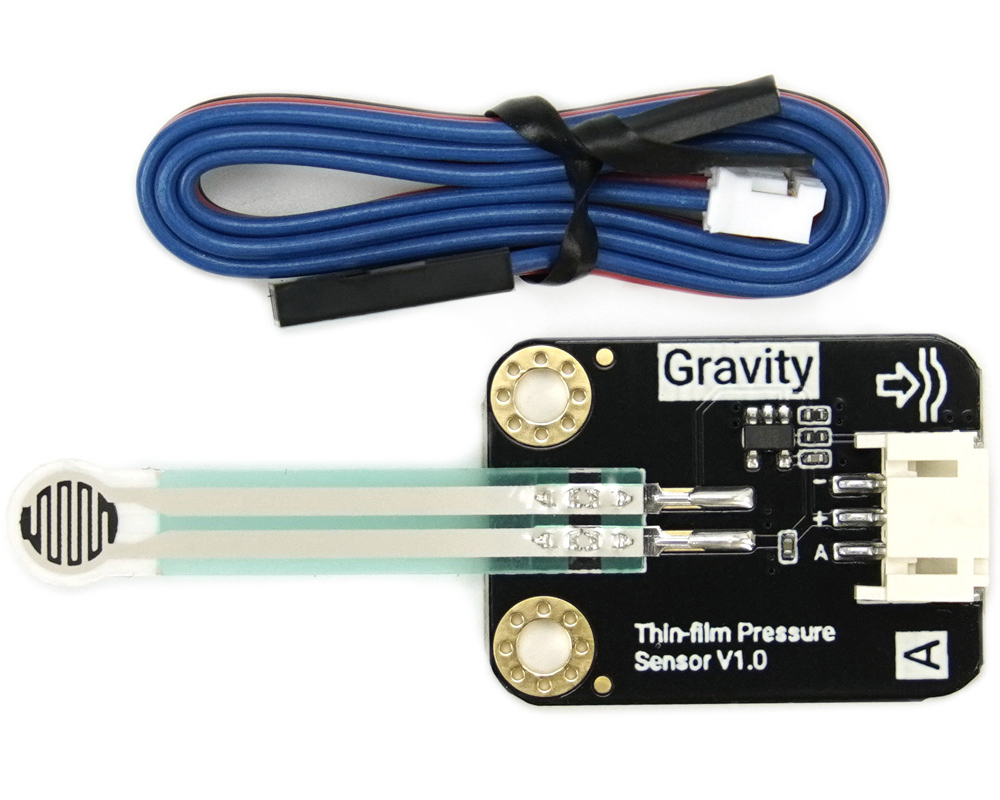

DF Robot Thin Film Pressure Sensor
The Gravity Thin Film Pressure Sensor detects force by measuring the deformation of its flexible film. With a detection range of 30g to 1.5kg, it produces higher analog output values as pressure increases. This sensor is ideal for educational projects, allowing students and makers to explore pressure measurement concepts hands-on. It seamlessly connects to Arduino, micro:bit, and Unihiker, requiring no complex setup or calibration.
With an ultra-thin 0.4mm profile, the sensor provides fast response times for real-time experiments. It is widely used in physics and engineering courses to demonstrate weight measurement, load distribution, and sensor feedback in robotics and interactive systems.
Quick Spec
- Operating Voltage: 3.3V–5V
- Pressure Range: 30g to 1.5kg
- Output: Analog (higher pressure = higher output)
- Interface Type: PH2.0-3P
- Sensor Thickness: 0.4mm
- Dimensions: 57.5 × 22mm

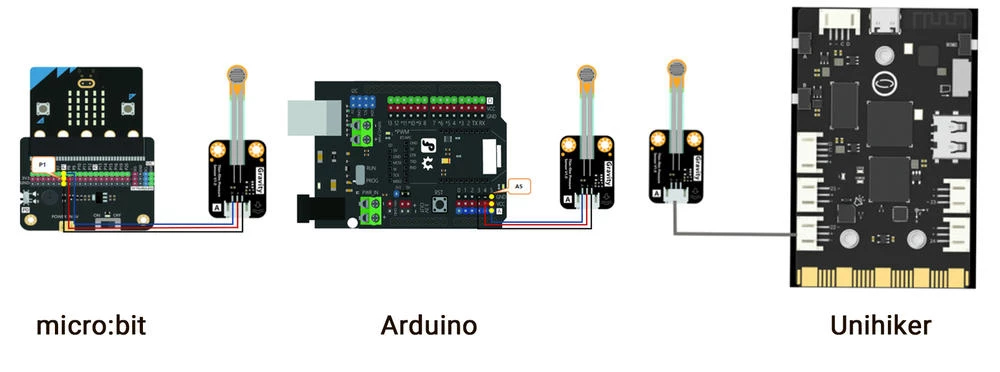

Wiring Diagram
Resources
Shipping List
- 1 x DF Robot Thin Film Pressure Sensor
- 1 x Gravity Interface Cable
DF Robot Thin Film Pressure Sensor
- Brand: DF Robot
- Product Code: SEN0616
- Weight: 0.014kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R108.00 (Inc Tax: R124.20)
