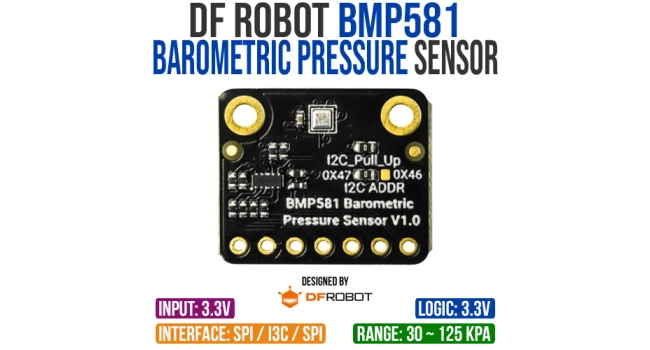

DF Robot Fermion BMP581 Barometric Pressure Sensor (I2C/I3C/SPI)

The DFRobot Fermion BMP581 Barometric Pressure Sensor is built around Bosch Sensortec’s latest-generation BMP581 chip, delivering exceptional accuracy, temperature stability, and ultra-low power performance. With an absolute pressure accuracy of ±0.3 hPa and ultra-low noise below 0.1 Pa (RMS), this sensor can detect subtle altitude changes—precise enough to distinguish building floor levels or monitor small pressure variations in dynamic environments.



Engineered for advanced IoT and motion-sensitive applications, the module features configurable IIR filtering and a built-in FIFO buffer to suppress noise and maintain smooth, reliable data output. Its ultra-low 2μA sleep current makes it ideal for battery-powered devices, while support for I2C, I3C, and SPI ensures seamless integration with a wide range of microcontrollers. Compact and breadboard-friendly with a standard 2.54mm pin pitch, the BMP581 is an excellent choice for drones, indoor navigation systems, weather stations, and wearable fitness trackers.

Quick Spec

• Operating Voltage: 3.3V DC
• Operating Current: 200μA
• Sleep Current: 2μA
• Communication Interface: I2C / I3C / SPI
• I2C Address: 0x47 (default) / 0x46
• Logic Level: 3.3V (level shifting required for 5V systems)
• Pressure Range: 30 ~ 125 kPa
• Temperature Range: 0 ~ 65°C
• Absolute Pressure Accuracy: ±0.3 hPa (typ.)
• Relative Pressure Accuracy: ±0.06 hPa / 10 kPa (typ.)
• Relative Altitude Accuracy: ±0.5 m / 10 kPa
• Pressure Resolution: 1 / 64
• Noise: < 0.1 Pa (RMS)
• Temperature Drift Coefficient: ±0.5 Pa/K
• PCB Dimensions: 19 × 16 × 2.49 mm
• Mounting Hole Spacing: 14 mm
• Mounting Hole Diameter: 2.0 mm
• Pin Pitch: 2.54 mm

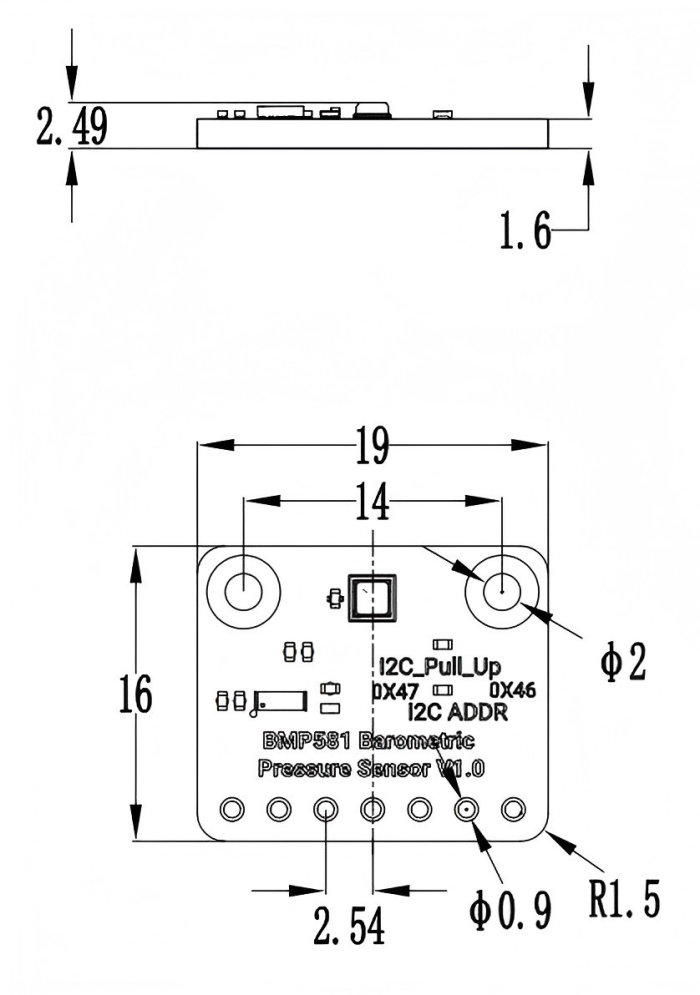

Dimensions

Board Layout

Pinout

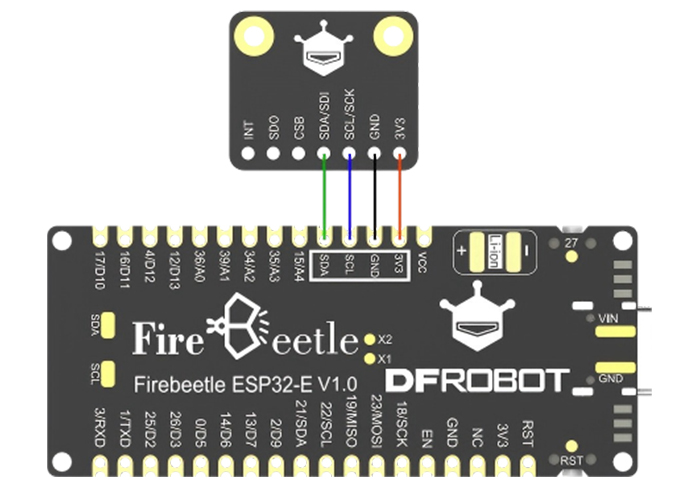

Wiring Diagram

Resources

• Product Page
• Product Wiki
• Schematic
• BMP581 Datasheet

Shipping List

• 1 x DF Robot Fermion BMP581 Barometric Pressure Sensor (I2C/I3C/SPI)
• 1 x 10-Pin Male Black Single Row Pin Header
