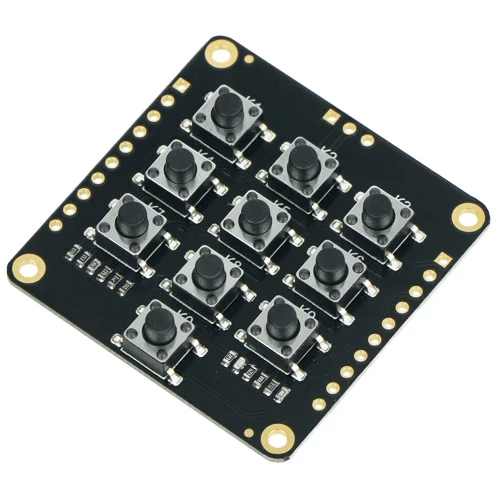

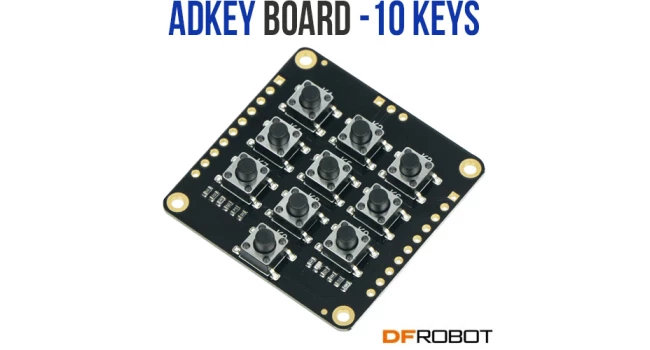

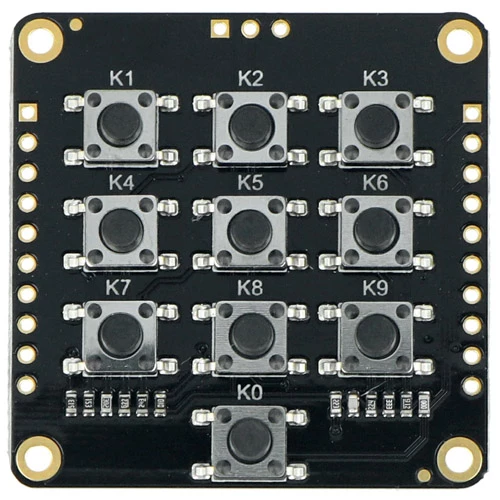

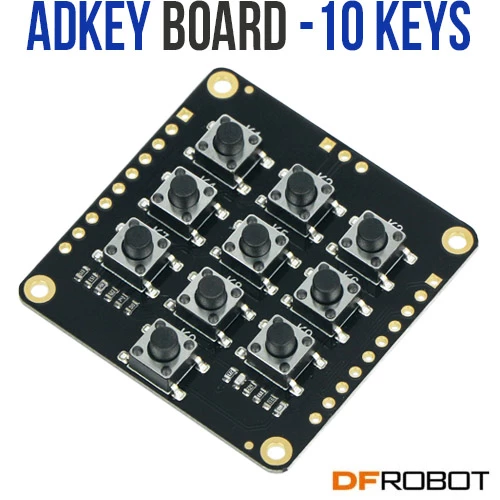

DF Robot ADKey Board - 10 keys
The DF Robot ADKey Board with 10 keys is an easy-to-use module designed to control DFPlayer Pro, DFPlayer Mini, or Voice Recorder Modules without requiring programming or additional resistors. This board includes 20 high-quality key caps that are smooth to the touch, offering a comfortable user experience while integrating easily into your projects. The board also features soldering pads on both sides, allowing you to connect your preferred custom keys for even more flexibility.
Additionally, this ADKey Board can serve as an analog key input for a main controller, letting you expand your controller's button functionality by adding up to 10 keys using only one analog port. This makes it an ideal choice for developers needing a compact, efficient button expansion solution.
Quick Spec
- Power Supply: 3.3~5V
- Key Size: 6 x 6 x 7mm
- Dimensions: 40 x 40mm
- Net Weight: 13g
Dimensions
Wiring Diagram
Resources
Shipping List
- 1 x DF Robot ADKey Board - 10 keys
DF Robot ADKey Board - 10 keys
- Brand: DF Robot
- Product Code: DFR0792
- Weight: 0.013kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | BB019 |
| Stellenbosch | In Stock | B0093 |
We ship free of charge between branches to complete your order.
-
R62.00 (Inc Tax: R71.30)
