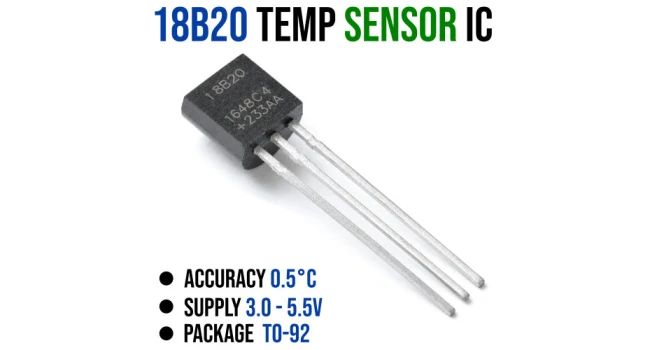

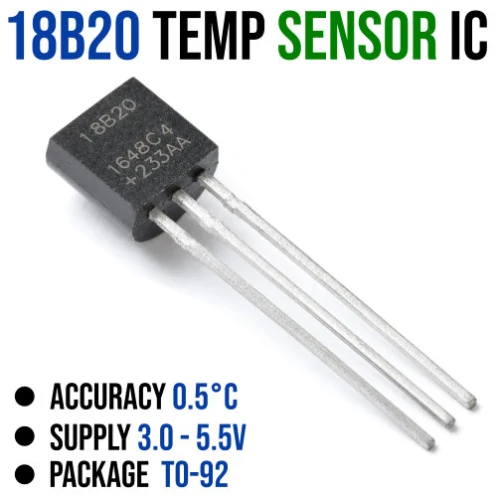

18B20 Temperature Sensor Chip TO-92
The DS18B20 is a TO-92 digital temperature sensor with a –55°C to +125°C measurement range, ±0.5°C accuracy, selectable 9–12-bit resolution and 1-Wire communication. Its unique 64-bit address supports multiple sensors per bus, while parasite power and programmable alarms simplify installation.
Quick Spec
- Part Number: 18B20
- Package: TO: 92
- Measurement Range: -55°C to +125°C
- Accuracy: ±0.5°C from -10°C to +85°C
- Resolution: Selectable 9–12 bit
- Communication: 1-Wire
- Unique 64-bit Address
- Supports Multiple Sensors per Bus
- Optional Parasite-Power Operation
- Programmable Temperature Alarms
Application
The 4.7 kΩ resistor pull-up resistor keeps the DS18B20 data line HIGH when idle, ensuring stable and reliable 1-Wire communication with the controller.
Resources
Shipping List
- 1 x 18B20 TO-92 Temperature Sensor Chip
18B20 Temperature Sensor Chip TO-92
- Brand: Generic
- Product Code: 18B20-TO-92
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | A7-01 |
| Stellenbosch | In Stock | Z6069 |
We ship free of charge between branches to complete your order.
-
R14.00 (Inc Tax: R16.10)
