• Description

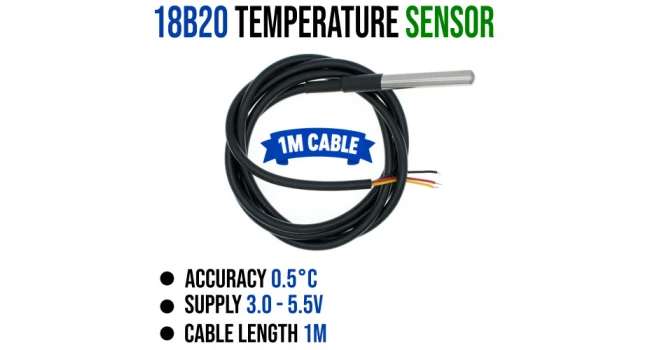

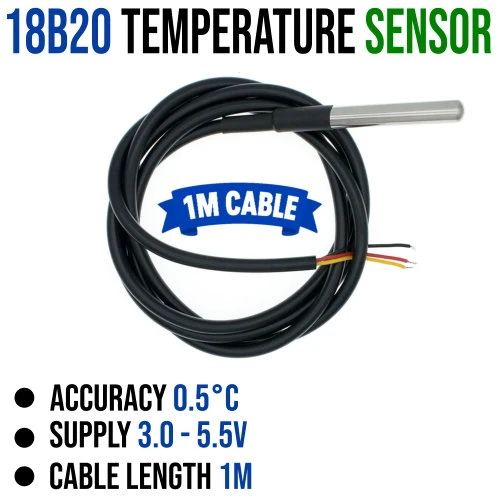

18B20 Digital Temperature Sensor, 1m cable

The 18B20 (DS18B20) is a 1-Wire Programmable Digital Temperature Sensor with a range of -55°C to +125°C with an accuracy of +/- 0.5°C. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C.

Quick Spec

• Operating voltage: 3V to 5.5V
• Communication: 1-Wire
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C
• Output Resolution: 9-bit to 12-bit (programmable)
• Unique 64-bit address enables multiplexing
• Conversion time: 750ms at 12-bit
• Programmable alarm options
• Probe Material: Stainless Steel Plated
• Cable Length: 1m
• Cable Material: ABS
• IP Rating: Not Rated
• Weight: 19g

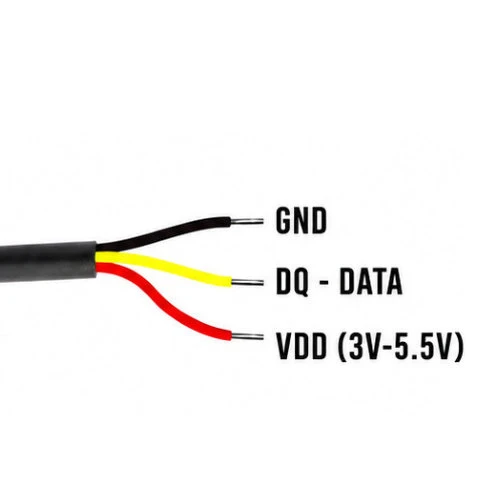

Pin Functions

Do the 18B20 sensor require 4k7 resistor for interfacing to a Micro Controller

The DS18B20 temperature sensor does not require a resistor when interfacing with a microcontroller. It communicates using the 1-Wire protocol, which requires only a single data line (and ground) for communication. However, it is common to include a pull-up resistor (usually 4.7kΩ) on the data line to ensure reliable communication. This is especially important when using longer wire lengths or when interfacing with circuits that have a high impedance. If you are not sure whether your circuit requires a pull-up resistor, it is usually a good idea to include one just to be safe.

Shipping List

• 1 x Temperature Sensor - DS18B20 - 1M

18B20 Digital Temperature Sensor, 1m cable

• Brand: Generic
• Product Code: 18B20-1M
• Weight: 0.023kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	BACK-OFFICE
Stellenbosch	In Stock	D5020
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R22.00 (Inc Tax: R25.30)
