2SC3834 NPN TO220 Transistor - 120V 7A (2 Pack)
The 2SC3834 is a high-power NPN silicon transistor housed in a TO-220 package, designed for general-purpose and high-frequency switching applications. With a collector-emitter voltage rating of up to 120V and a continuous collector current of 7A, it’s well-suited for use in audio amplifiers, power supplies, and motor drivers. This device also features a high collector dissipation of 50W and a transition frequency of 30MHz, making it reliable for fast switching and RF-related circuits.
This 2-pack offers solid thermal stability and performance over a wide temperature range, thanks to its robust construction and high DC gain, which ranges between 70 and 220 depending on conditions. It’s a versatile, affordable option for both prototyping and production environments.
Quick Spec
- Type: NPN
- Material: Silicon
- Package: TO-220
- Collector-Emitter Voltage (Vce): 120V
- Collector-Base Voltage (Vcb): 200V
- Emitter-Base Voltage (Veb): 8V
- Collector Current (Ic max): 7A
- Collector Dissipation (Pc): 50W
- DC Current Gain (hFE): 70–220
- Transition Frequency (fT): 30MHz min
- Junction Temperature Range: -55°C to +150°C
- Operating Junction Temp (Tj): up to 135°C

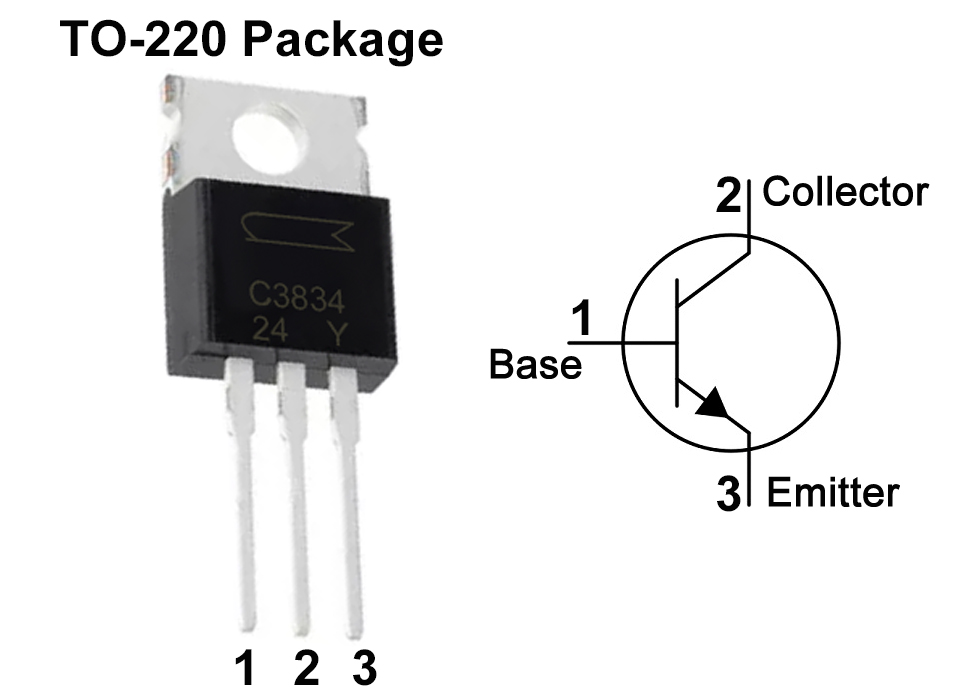

Pinout
Resources
Shipping List
- 2 x 2SC3834 NPN TO220 Transistor - 120V 7A
2SC3834 NPN TO220 Transistor - 120V 7A (2 Pack)
- Brand: Generic
- Product Code: 2SC3834
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UPPER-B01 |
| Stellenbosch | In Stock | B0071 |
We ship free of charge between branches to complete your order.
-
R15.00 (Inc Tax: R17.25)
