Pololu High-Power Stepper Motor Driver – 8A per Phase
The Pololu High-Power Stepper Motor Driver (36v8) is designed for controlling large bipolar stepper motors in demanding motion-control and robotics applications. Built around the Texas Instruments DRV8711 and paired with external MOSFET H-bridges, this driver supports operating voltages from 8V to 50V while delivering up to 8A continuous current per phase without additional cooling. With sufficient cooling, it can handle peak currents of up to 11A per phase, making it suitable for high-performance stepper motor systems.
The driver offers extensive configuration through an SPI interface, allowing users to fine-tune motor behaviour including current limits, decay modes, blanking times, and motion profiles for smooth and precise control. It supports microstepping resolutions from full-step down to 1/256-step for high precision positioning. Optional STEP/DIR inputs allow for traditional stepper control, while advanced features such as stall detection, back-EMF monitoring, and alternative brushed DC motor control modes provide exceptional flexibility for advanced robotics, CNC, and automation projects.
Quick Spec
- Brand: Pololu
- Driver IC: Texas Instruments DRV8711
- Motor Type: Bipolar Stepper Motor
- Operating Voltage: 8V – 50V
- Continuous Current per Phase: 8A
- Peak Current per Phase: 11A (with sufficient cooling)
- Control Interface: SPI configurable
- Optional Control Pins: STEP/DIR
- Microstep Resolutions: Full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
- Logic Voltage: 1.5V – 5.5V compatible
- Protection Features: Undervoltage lockout, over-current protection, short-circuit protection, reverse-voltage protection
- Additional Features: Stall detection output, back-EMF monitoring, adjustable current limiting
- Dimensions: 33.02 × 30.48mm
- Headers Soldered: No

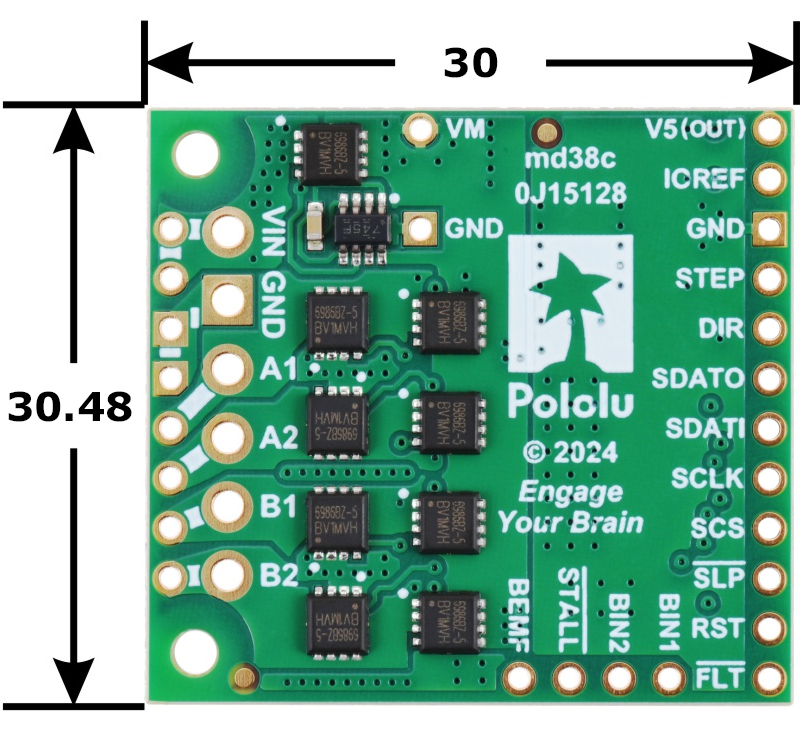

Dimensions

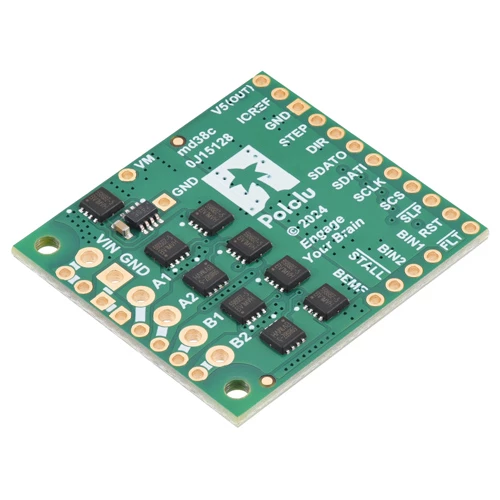

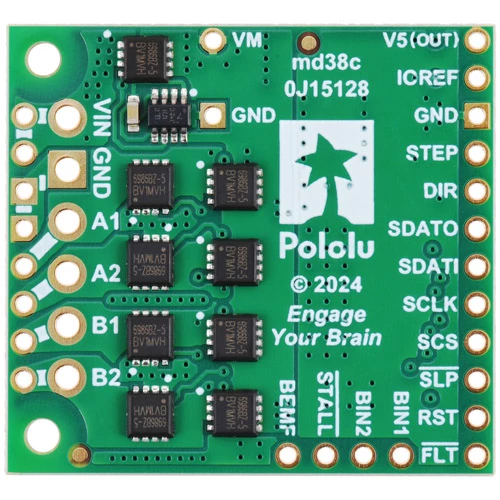

Pinout

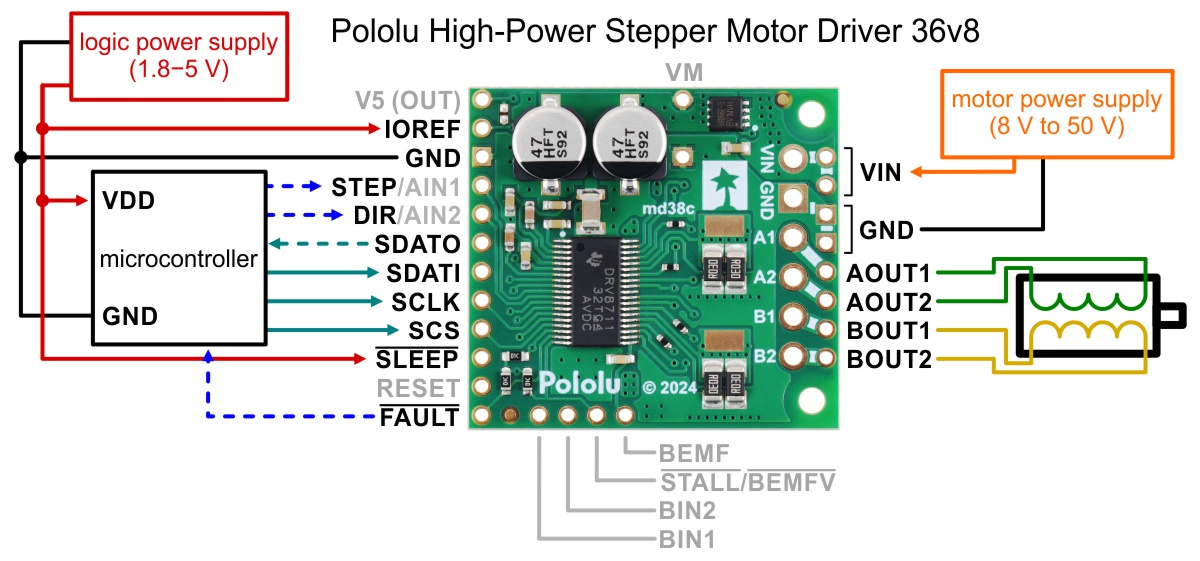

Wiring Diagram
Resources
Shipping List

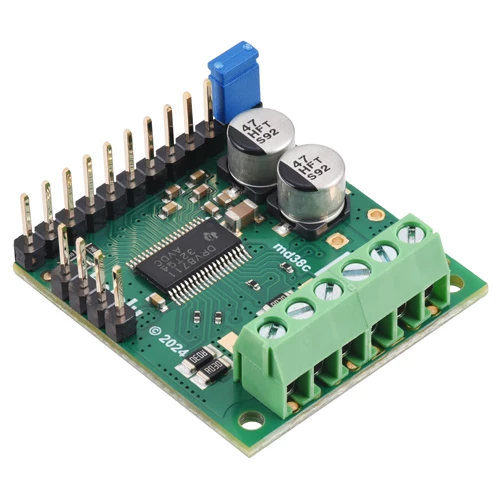

- 1 x Pololu High-Power Stepper Motor Driver – 8A per Phase
- 1 x Header Set
- 3 x 2-Pin Screw Terminal
Pololu High-Power Stepper Motor Driver – 8A per Phase
- Brand: Pololu Electronics
- Product Code: 3731
- Weight: 0.012kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | B41 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R422.00 (Inc Tax: R485.30)
