• Description

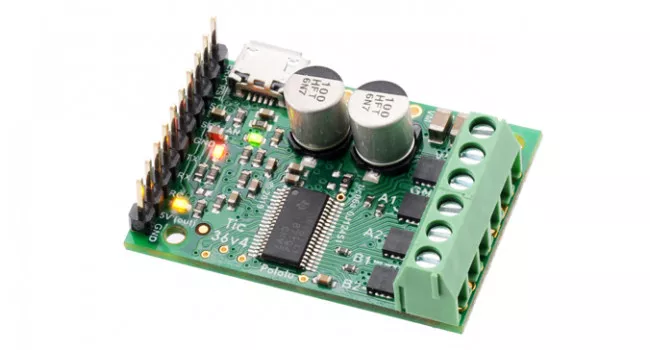

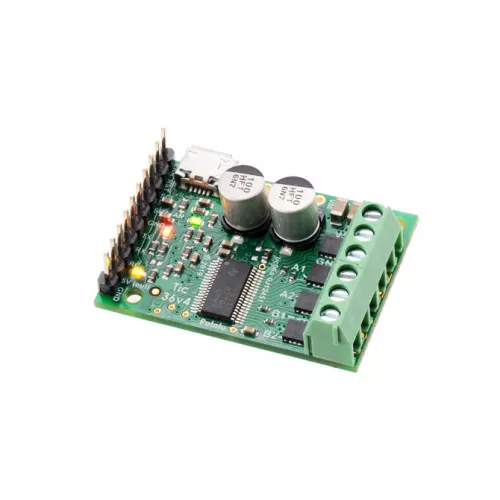

Pololu USB Stepper Driver 4A (Max 6A), TIC 36V4 Multi-Interface

The Pololu TIC family of stepper motor controllers makes it easy to add basic control of a bipolar stepper motor to a variety of projects. These versatile, general-purpose modules support six different control interfaces: USB for direct connection to a computer, TTL serial and I²C for use with a microcontroller, RC hobby servo pulses for use in an RC system, analog voltages for use with a potentiometer or analog joystick, and quadrature encoder for use with a rotary encoder dial. They also offer many settings that can be configured using our free configuration utility (for Windows, Linux, and macOS). This software simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB (a micro-B USB cable is required to connect the Tic to a computer).

Product Video

Quick Spec

• Model: Tic 36v4
• Motor Driver: discrete MOSFETs
• Control Interface: USB; non-inverted TTL serial; I²C; RC servo pulses; analog voltage; quadrature encoder
• Minimum Operating Voltage: 8V
• Maximum Operating Voltage: 50V (Reverse voltage protection only works up to 40V)
• Continuous Current per Phase: 4A
• Maximum Current per Phase: 6A
• Maximum Step Rate: 50000 PPS
• Microstep Resolutions: full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, and 1/256
• Reverse Voltage Protection
• Weight: 9.6g

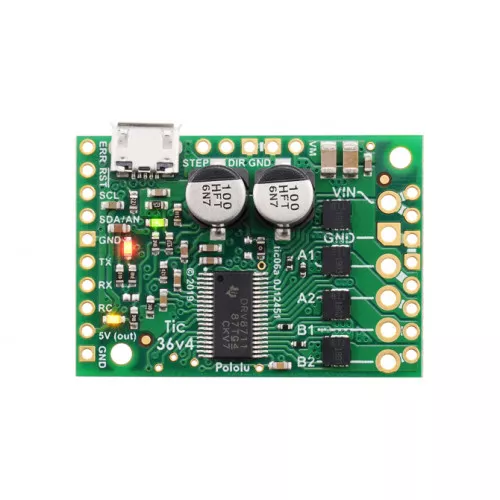

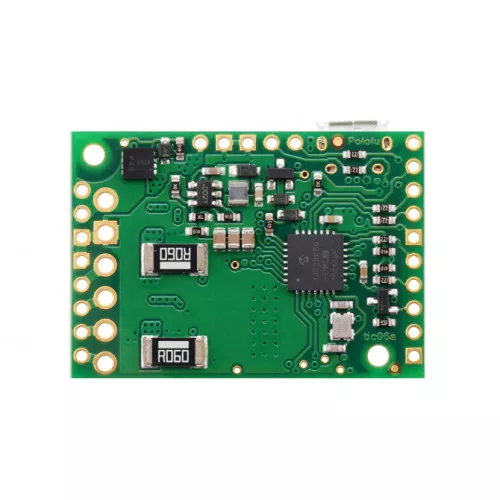

Board Layout

Resources

• Product Page
• Tic Software Download
• TB67S249FTG Datasheet
• Tic Stepper Motor Controller User’s Guide

Shipping List

• 1 X Pololu Tic 36v4 Multi-Interface Stepper Controller

Pololu USB Stepper Driver 4A (Max 6A), TIC 36V4 Multi-Interface

• Brand: Pololu Electronics
• Product Code: 3140
• Weight: 0.011kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	Limited Stock	C49
Stellenbosch	New Product Arriving Soon
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R918.00 (Inc Tax: R1,055.70)
