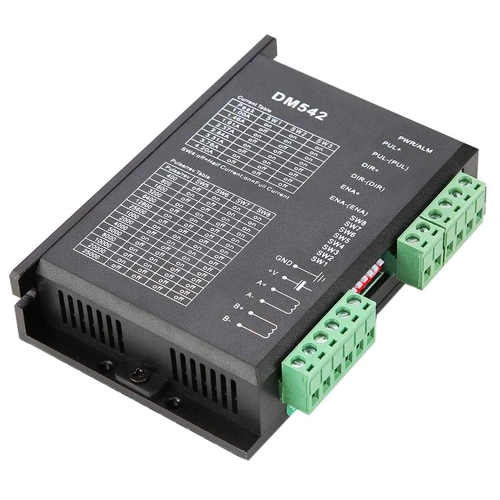

Stepper Driver - 4.2A/Phase
The DM542C is a two phase hybrid stepper motor driver, it designed to get the most out of your stepper motor. This driver can be used with motors requiring a current of up to 4.2A to run and features micro stepping up to 128th of a step. This driver is typically used with CNC machines, 3D printers, laser cutting machines and automation machines.
Quick Spec
- 2 Phase stepper driver
- Input Voltage: 12 - 36VDC
- Input Current: <4A
- Micro stepping: 15 options up to 128 micro stepping
- Output current: 8 channel current setting
- Opto-isolated inputs
- Micro step resolution is set by SW 4, 5, 6, 7 of the DIP switch
- Dimensions: 96 x 59 x 19.5mm
Dimensions

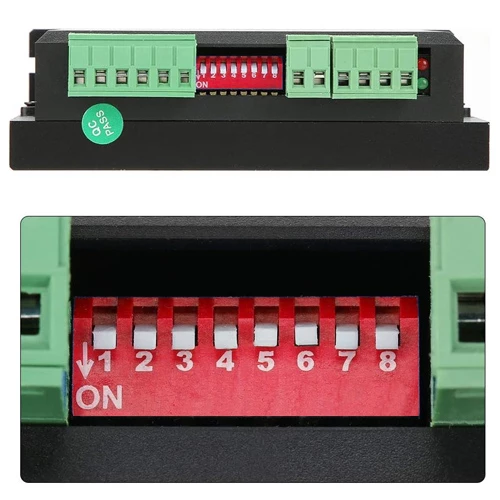

Dip Switch Settings
| Pules/Rev | SW4 | SW5 | SW6 | SW7 |
|---|---|---|---|---|
| 400 | off | on | on | on |
| 800 | on | off | on | on |
| 1600 | off | off | on | on |
| 3200 | on | on | off | on |
| 6400 | off | on | off | on |
| 12800 | on | off | off | on |
| 25600 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 25000 | off | off | off | off |

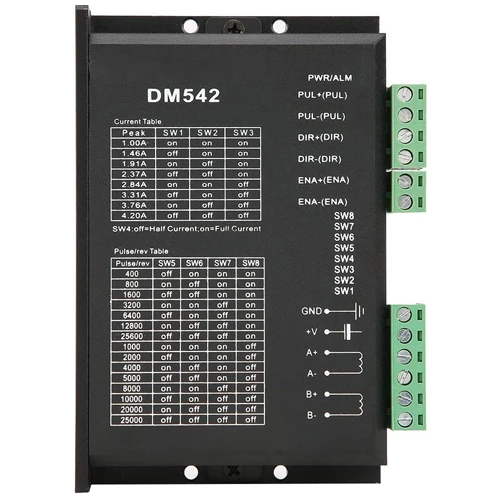

Layout
Wiring Diagram
Shipping List
- 1 x Stepper Driver - 4.2A/Phase
Stepper Driver - 4.2A/Phase
- Brand: Generic
- Product Code: DM542C
- Weight: 0.148kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UI041 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
