Dual VNH3SP30 motor driver
If you are looking to drive two high-power motors through one compact unit, these dual VNH3SP30 motor driver carriers are perfect for you. With these boards, it’s easy to get a medium-sized, differential drive robot running in no time. The VNH3 version is a lower-cost option than its VNH2 counterpart.
Quick Spec
- Operating supply voltage (Vcc) 5.5 – 36 V* 5.5 – 16 V
- Peak output current per channel: 30 A (Absolute Max)
- MOSFET on-resistance (per leg) 34 mΩ 19 mΩ
- Maximum PWM frequency 10 kHz 20 kHz
- Current sense none approximately 0.13 V/A
- Over-voltage shutoff 36 V* 16 V minimum (19 V typical)
- Time to overheat at 20 A** 8 seconds 35 seconds
- Time to overheat at 15 A** 30 seconds 150 seconds
- Current for infinite run time** 9 A 14 A

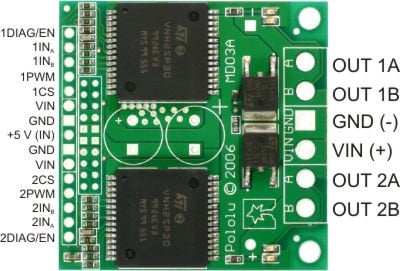

Board Layout
Code
Resources
Shipping List
- 1 x VNH3SP30 motor driver board.
Dual VNH3SP30 motor driver
- Brand: Pololu Electronics
- Product Code: 707
- Weight: 0.023kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | Limited Stock | S15 |
We ship free of charge between branches to complete your order.
-
R715.00 (Inc Tax: R822.25)
