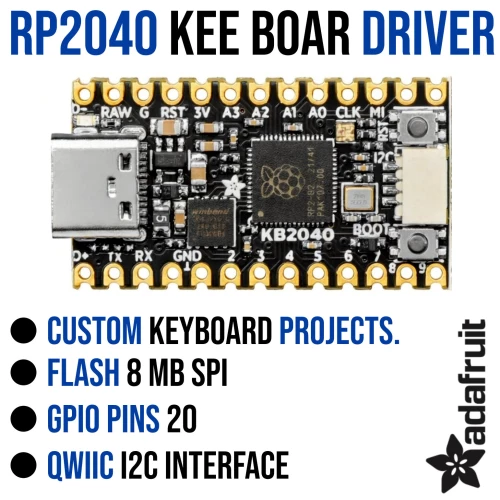

Adafruit KB2040 Kee Boar Driver for Custom Keyboards
The Adafruit KB2040 (Kee Boar Driver) is specifically designed for custom mechanical keyboard projects.
Primary Uses
- Custom Keyboard Controller - Replaces the standard controller in mechanical keyboards
- Keyboard Firmware - Runs QMK, KMK
- Direct Key Matrix Scanning - The GPIO pins connect directly to keyboard switch matrices
Quick Spec
- Microprocessor: RP2040 32-bit 125 MHz
- Logic: 3.3V and power
- FLASH: 8 MB SPI, RAM 264 KB, No EEPROM
- GPIO: 20, ADC Four X 12 bit ADCs, Two I2C, Two SPI and two UART
- PWM outputs: 16 - for servos, LEDs, etc
- The 10 digital non-ADC GPIO are consecutive for maximum PIO compatibility
- RGB NeoPixel for colorful status indication
- Classic green power LED
- Qwiic Connector: Yes
- Regulator: 3.3V regulator with 500mA peak current output
- Dimensions: 35 x 17.8 x 4.9mm
- Net Weight: 7g
Resources
Shipping List
- 1 x Adafruit KB2040 - RP2040 Kee Boar Driver
Adafruit KB2040 Kee Boar Driver for Custom Keyboards
- Brand: Adafruit
- Product Code: AF5302
- Weight: 0.007kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG225 |
| Stellenbosch | In Stock | C0036 |
We ship free of charge between branches to complete your order.
-
R189.00 (Inc Tax: R217.35)
