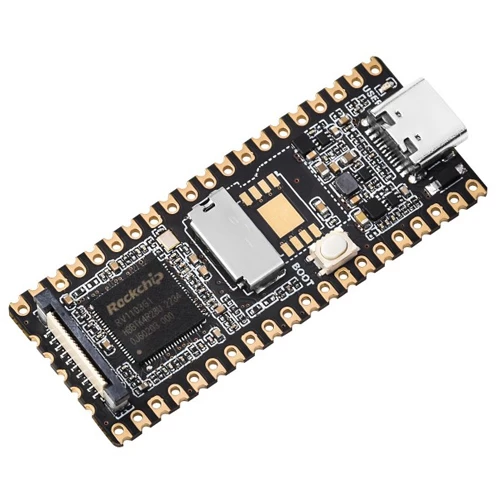

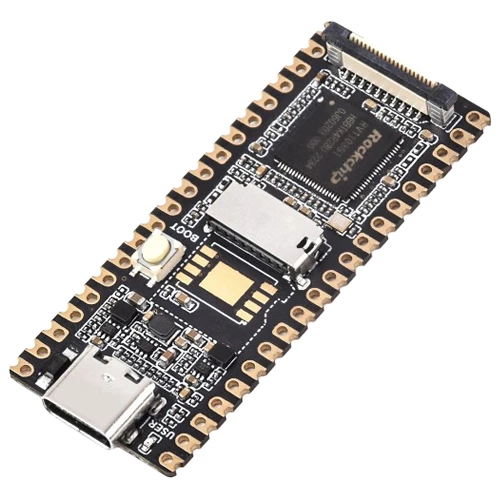

LuckFox Pico Linux Dev Board - RV1103

Introducing the LuckFox Pico Linux Dev Board - RV1103. Powered by the Rockchip RV1103 chip, this micro Linux development board boasts a single-core ARM Cortex-A7 processor with integrated NEON and FPU, plus an NPU supporting INT4/INT8/INT16 mixed operations. With a computing power of up to 0.5 TOPs, it's ideal for various AI applications, featuring a hardware-based ISP for advanced image processing. Suitable for smart home devices, industrial automation, drones, and more, it supports GPIO, UART, SPI, I2C, and USB interfaces for seamless development and debugging.

Quick Spec

• Processor: Cortex [email protected] + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: Input 4M @30fps (Max)
• Memory: 64MB DDR2
• USB: USB 2.0 Host/Device
• Camera: MIPI CSI 2-lane
• GPIO: 24 × GPIO pins
• Default Storage: TF card (Not included)

Dimensions

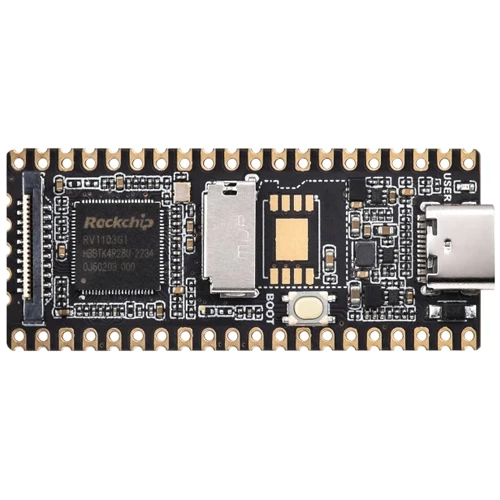

Board Layout

1. USB Type-C connector: for power supply and program burning
2. ACT-LED
3. BOOT button: Press it when powering on to enter download mode
4. TF card slot
5. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core
6. CSI camera interface: MIPI CSI 2-lane
7. GPIO header
8. USB test pads
9. BOOT test pad
10. Microphone test pads
11. Ethernet interface pads

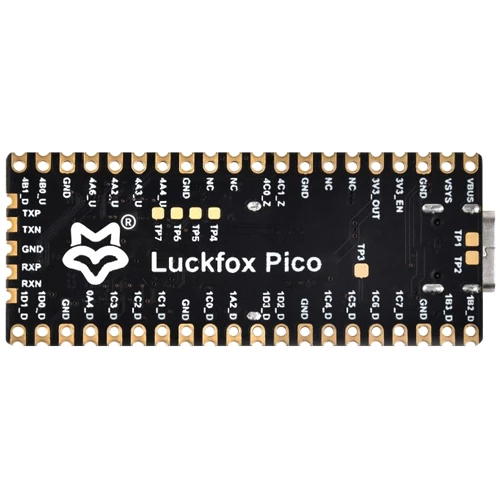

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• RV1103 Datasheet

Shipping List

• 1 x LuckFox Pico Linux Dev Board - RV1103

LuckFox Pico Linux Dev Board - RV1103

• Brand: Waveshare
• Product Code: W25078
• Weight: 0.013kg
