• Description

LuckFox Pico Mini Linux Dev Board - RV1103

Introducing the LuckFox Pico Mini Linux Dev Board - RV1103. Powered by the Rockchip RV1103 chip, this mini Linux development board boasts a single-core ARM Cortex-A7 processor with integrated NEON and FPU, plus an NPU supporting INT4/INT8/INT16 mixed operations. With a computing power of up to 0.5 TOPs, it's ideal for various AI applications, featuring a hardware-based ISP for advanced image processing. Suitable for smart home devices, industrial automation, drones, and more, it supports GPIO, UART, SPI, I2C, and USB interfaces for seamless development and debugging.

Quick Spec

• Processor: Cortex [email protected] + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: Input 4M @30fps (Max)
• Memory: 64MB DDR2
• USB: USB 2.0 Host/Device
• Camera: MIPI CSI 2-lane
• GPIO: 24 × GPIO pins
• Default Storage: TF card (Not included)

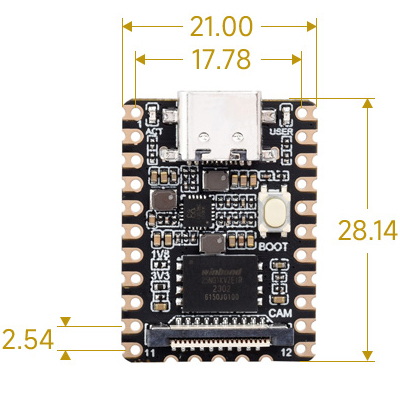

Dimensions

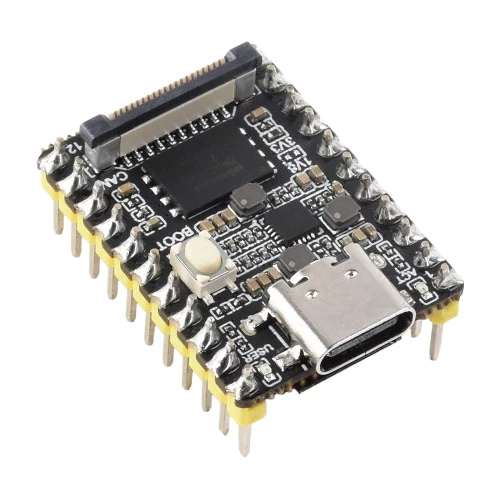

Board Layout

1. USB Type-C connector: for power supply and program burning
2. ACT-LED
3. User LED
4. BOOT button: Press it when powering on to enter download mode
5. SLC NAND FLASH
6. CSI camera interface: MIPI CSI 2-lane
7. TF card slot
8. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core

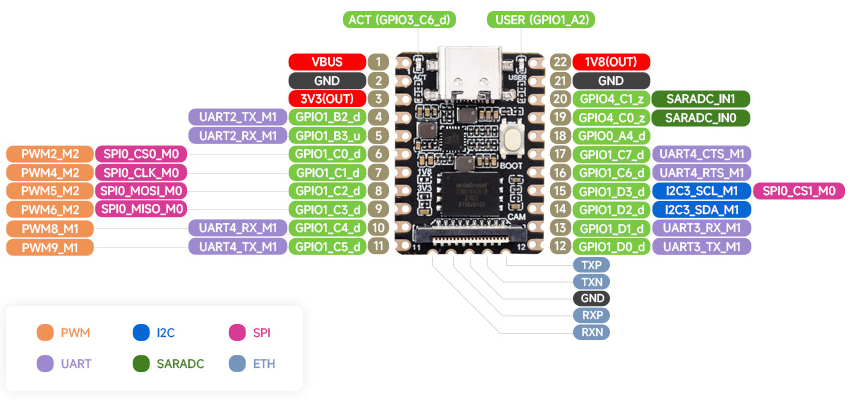

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• RV1103 Datasheet

Shipping List

• 1 x LuckFox Pico Mini Linux Dev Board - RV1103

LuckFox Pico Mini Linux Dev Board - RV1103

• Brand: Waveshare
• Product Code: W25868
• Weight: 0.013kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	FD100
Stellenbosch	In Stock	B0034
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R184.00 (Inc Tax: R211.60)
