BS170 N-Channel MOSFET 60V 0.5A (4 Pack)
The BS170 is a well-known N channel MOSFET manufactured in TO-92 package by On Semiconductor (ONSEMI). It can be used for both switching and amplification purposes. When used for switching, it can drive load of 500mA. It is able to perform fast switching and capable of switching loads around 7 nanoseconds. Due to this. it can be used in high speed circuits. It can also perform well on low voltage making it an ideal MOSFET to use in portable and battery-operated applications.
Other than that, it can also be used as an amplifier and you can use it in your audio amplifier circuits and also for any general purpose signal amplification requirements.
Quick Spec
- Manufacturer: ONSEMI Original (ON Semiconductor)
- Channel Type: N
- Maximum Continuous Drain Current: 500 mA
- Maximum Drain Source Voltage: 60 V
- Package Type: TO-92
- Maximum Drain Source Resistance: 5 Ω
- Gate Threshold Voltage: 0.8 ~ 3V
- Maximum Power Dissipation: 830 mW
Pinout

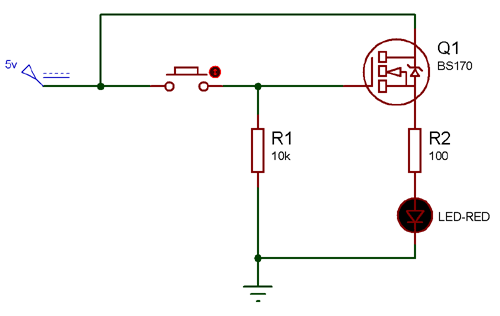

Circuit Using the BS170 MOSFET
Mosfet Basics
Resources
Shipping List
- 4 x MOSFET 60V 0.5A N-Channel
BS170 N-Channel MOSFET 60V 0.5A (4 Pack)
- Brand: ONSEMI
- Product Code: BS170-TO-92
- Weight: 0.002kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R14.00 (Inc Tax: R16.10)
