Buck Regulator, High Current, Vin 10-40V, Vout 1.2V-36V 20A

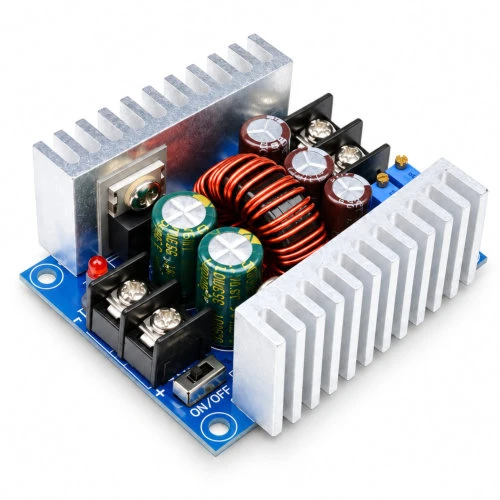

With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Wiring is convenient with these large current 30A screw terminals. The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.

Quick Spec

  • Input Voltage: 6V to 40V DC (10V to 40V is suggested)
  • Output Voltage: 1.2V to 36V DC
  • Output Current: 20A (max.), 15A (suggested)
  • Efficiency: 95% (24V to 12V, 20A)
  • Output Ripple: ≤50mV
  • Wiring Method: Terminal
  • Short Circuit Protection: Self-recovery (cannot short circuit for long time)
  • When input and output is common grounded, no-load CV output constant voltage,CC output constant current

Dimensions

300 W 20 A 003

Wiring

  • VO+: Output positive
  • VO-: Output negative
  • +IN: Input positive
  • -IN: Input negative
  • CV: Output voltage adjustment
  • CC: Output current adjustment
  • EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

Shipping List

  • 1 X DC DC Buck Converter 300W 20A


Buck Regulator, High Current, Vin 10-40V, Vout 1.2V-36V 20A

  • Brand: Generic
  • Product Code: BUCK-300W-20A
  • Weight: 0.065kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock FD204
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R136.00 (Inc Tax: R156.40)
