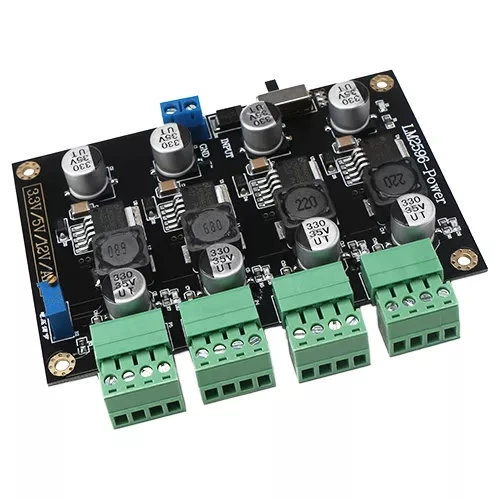

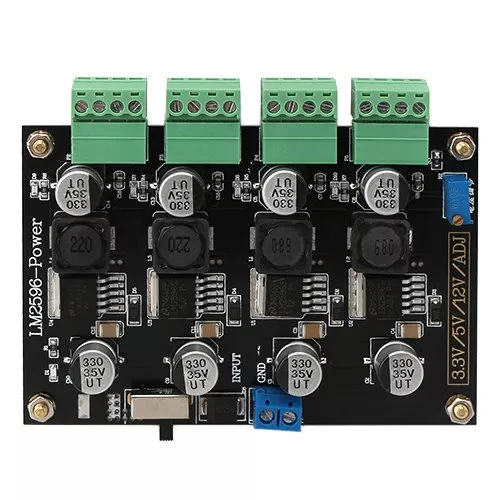

LM2596 Multi Output Power Supply

This is a Multiple Output Power Supply Module/Adapter/Driver Module which uses the LM2596 regulator. The module has an input voltage range 5.0V ~ 40.0V DC, and has a 4-way output voltages channels of 3.3V, 5V, 12V and an adjustable Voltage channel. The board is fairly small at 100mm x 68mm, is highly efficiency and is stable over a long period of time as well as being reliable. The board is great for any DIY project that would require multiple regulated power supplies.

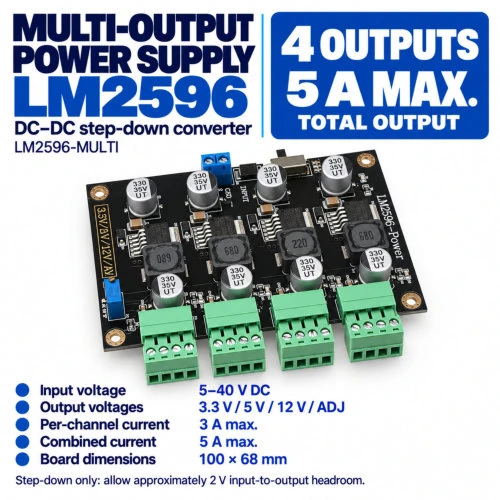

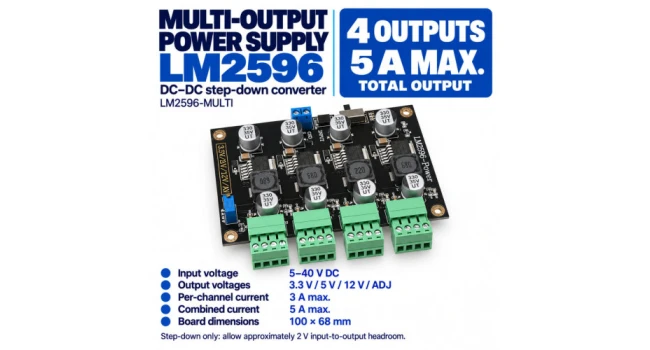

Quick Spec

  • Module Type: DC DC Step Down Converter
  • Input Voltage Range: 5.0V ~ 40.0V DC

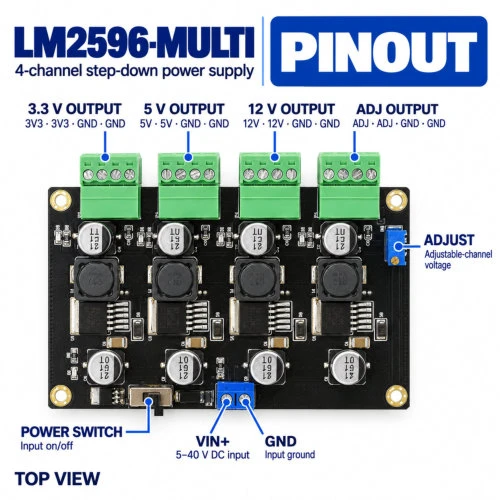

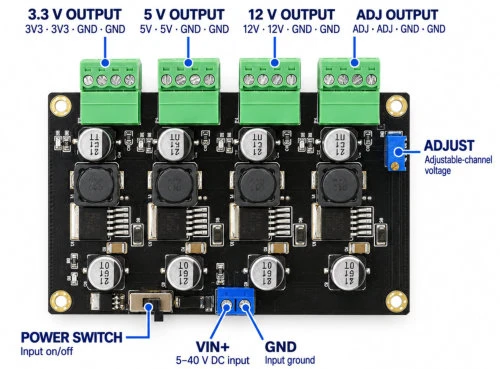

  • Output Voltage: 4-way output
    • 3.3V
    • 5V
    • 12V
    • Adjustable (using the trimpot)
  • ADJ Adjustable Voltage Range: buck mode 2V drop
  • 1-way Maximum Output Current: 3A
  • Multiple Maximum Output Current: 5A,can be multiplexed output at the same time
  • Over-current Protection with a anti-over-current fuse

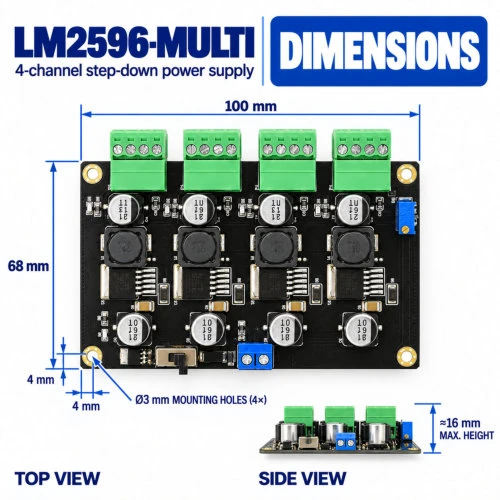

Dimensions

LM2596_MULTI_004

Shipping List

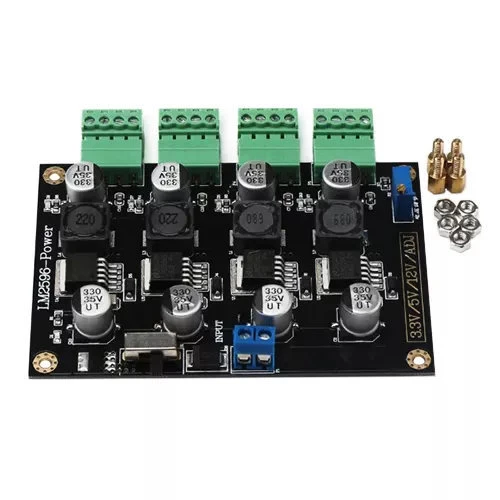

  • 1 x LM2596 Multi Output Power Supply
  • 4 x 10mm Standoff


LM2596 Multi Output Power Supply

  • Brand: Flex Power
  • Product Code: LM2596-MULTI
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R238.00 (Inc Tax: R273.70)
