• Description

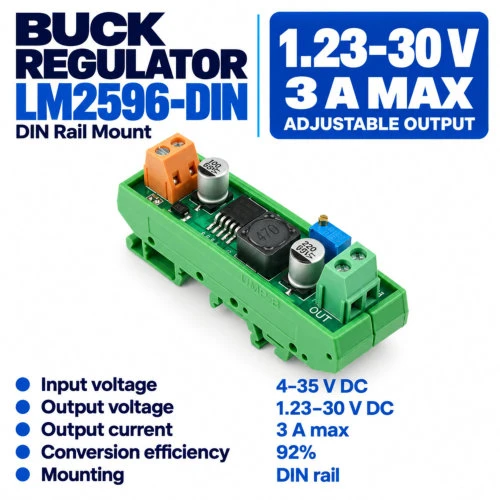

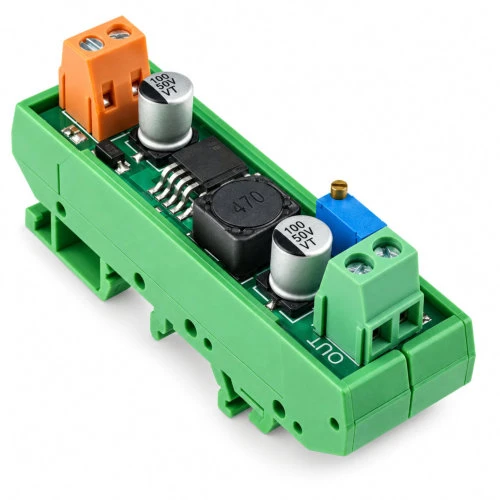

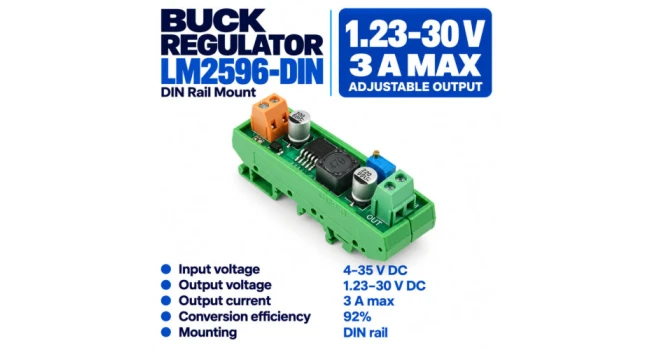

LM2596 Voltage Regulator VIN 4-35V VOUT 1.2-30V 3A -DIN Rail

The DC-DC Step-down (buck) Adjustable Power Supply Module is based on monolithic integrated circuit LM2596, ideally suited for easy and convenient design of a step−down switching regulator (buck converter). It is capable of driving a 3.0A load with excellent line and load regulation. This device is available in adjustable output version and it is internally compensated to minimize the number of external components to simplify the power supply design. This model is also DIN Rail mount ready.

Quick Spec

• Model: DIN Rail Mount LM2596 DC-DC Buck Regulator
• Input Voltage: 4V ~ 35V
• Output Voltage: 1.23V ~ 30V
• Output Current: 3A (Max)
• Conversion Efficiency: 92%
• Output Ripple: <30mV
• Switching Frequency: 150KHz
• Working Temperature: -45 ~ +85°C
• Dimensions: 43 x 21 x 14mm

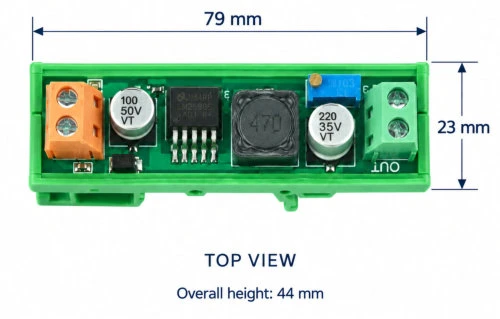

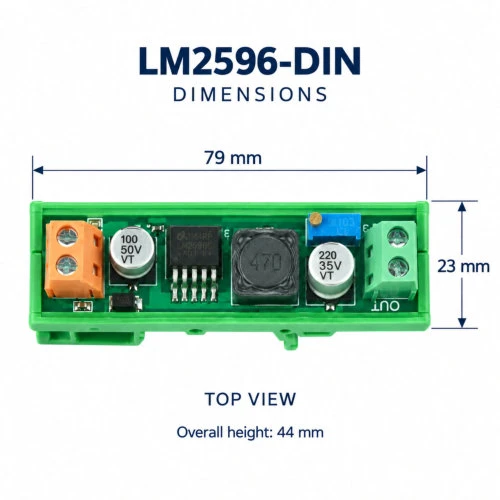

Dimensions

Resources

• LM2596 Datasheet

Shipping List

• 1 x LM2596 Voltage Regulator VIN 4-35V VOUT 1.2-30V 3A -DIN Rail

LM2596 Voltage Regulator VIN 4-35V VOUT 1.2-30V 3A -DIN Rail

• Brand: Generic
• Product Code: LM2596-DIN
• Weight: 0.038kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	UH075
Stellenbosch	In Stock	Z6075 + Z6076
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R218.00 (Inc Tax: R250.70)
