LM2596 Mini Buck Regulator VIN 5-18V OUT 1-17V 2A
The mini 360 step down converter is a monolithic synchronous reversing electronic device, which allows converting direct current “DC” voltages to another “DC” voltage with high conversion efficiency. This device has an integrated MP1482 chip that integrates 130mΩ MOSFETS to provide 2A of continuous load current over a wide input voltage and operation of 4.75V to 18V.
This mini voltage converter is perfect to apply it in your electronics projects where you need to maintain the power you want to supply, due to its small size and easy connection, it is considered a very versatile and practical device when using it.
This device supplies an output voltage lower than the input voltage, it can operate with a voltage from 4.75 to 18 V, at a switching frequency of 340 KHz and a load current of 1.8 A continuously and up to 2 A during a short time.
Finally, it has a variable potentiometer that allows the required output voltage to be adjusted in steps of ± 2.5%, and the maximum difference between the output and input voltage should not exceed 15V. There is no protection against reverse polarity, but against overheating which shuts down the module when it reaches 160°C.
Quick Spec

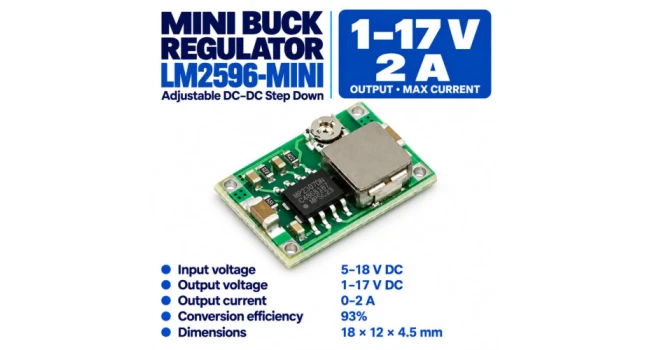

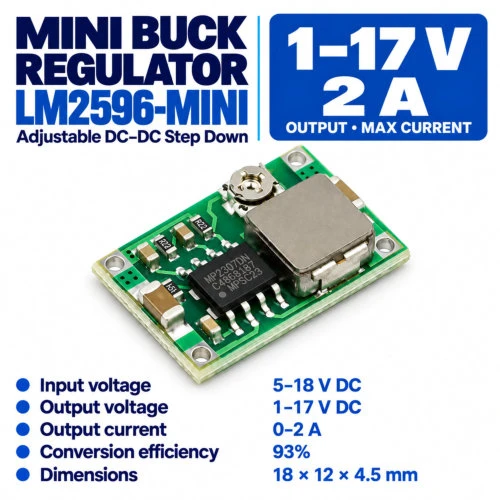

- Model: MH-MINI-360
- Input Voltage: 5 ~ 18V
- Output Voltage: 1 ~ 17V
- Output Current: 0-2A
- Conversion Efficiency: 93%
- Switching Frequency: 340kHz
- Output Ripple: 30mV (No load)
- Load Regulation: ±0.5%
- Voltage Regulation: ±2.5%
- Operating Temperature: -40 ~ +85°C

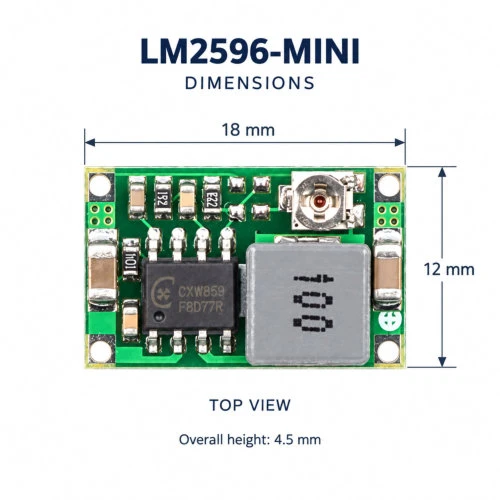

- Dimensions: 18 x 12 x 4.5mm
- Weight: 3g
