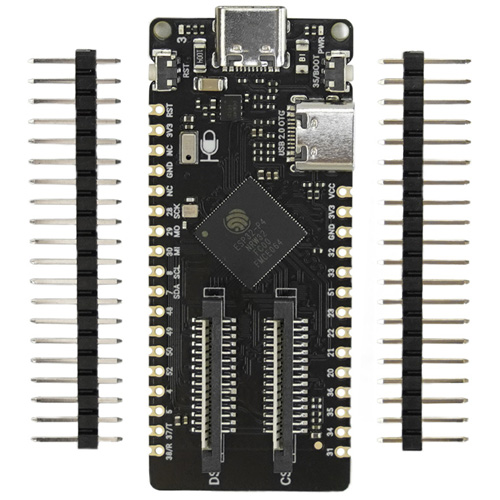

DF Robot FireBeetle 2 ESP32-P4 AI Vision Board

The DF Robot FireBeetle 2 ESP32-P4 AI Vision Board is a compact, high-performance MCU development platform built around the ESP32-P4R32 chip, specifically engineered for advanced image processing and AI-driven HMI applications. Featuring a dual-core 360 MHz RISC-V processor with AI extensions, dedicated image acceleration hardware, and rich multimedia interfaces, it supports smooth high-definition video playback and image capture up to 1080p@30fps.

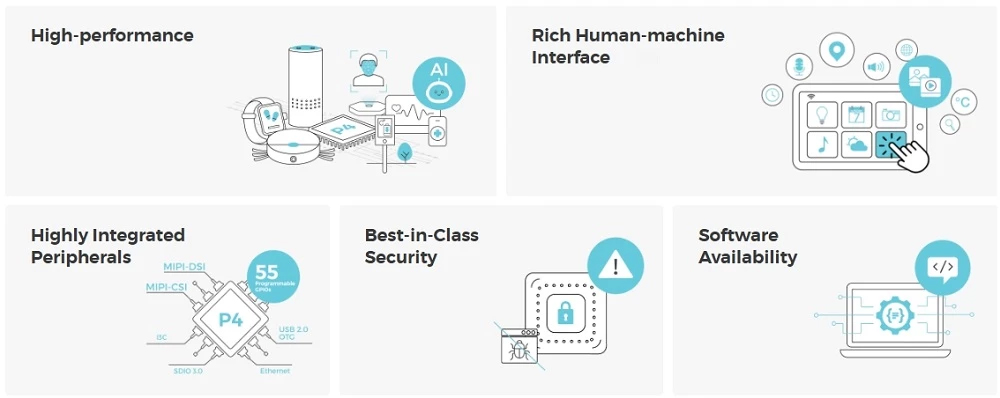

DFR1172 006

Equipped with native MIPI-DSI and MIPI-CSI interfaces, the board directly supports Raspberry Pi DSI displays and CSI cameras, enabling high-quality visual output and capture for applications such as AI cameras, smart doorbells, surveillance systems, and interactive control panels. Integrated WiFi and Bluetooth connectivity via the ESP32-C6 module, USB OTG 2.0, onboard microphone, and TF card storage make it a powerful yet space-efficient solution for multimedia-centric embedded systems and AI vision projects.

Quick Spec

Processor: Dual-core RISC-V 32-bit @ 360 MHz + single-core RISC-V 32-bit @ 40 MHz
AI acceleration: AI extensions with single-precision FPU
Operating voltage: 3.3 V
Input voltage: 5 V DC (Type-C / VCC)
Memory: 32 MB PSRAM, 16 MB flash
On-chip memory: 768 KB HP L2MEM, 32 KB LP SRAM
ROM: 128 KB HP ROM, 16 KB LP ROM
Display interface: MIPI-DSI (up to 720p@88fps or 1080p@30fps)
Camera interface: MIPI-CSI (up to 720p@88fps or 1080p@30fps)
Wireless: WiFi 802.11b/g/n/ax (2.4 GHz), Bluetooth 5
USB: High-speed USB OTG 2.0
Storage: TF card slot (SDIO 2.0)
Audio: On-board microphone
I/O interfaces: UART ×5, I2C ×2, I3C ×1, SPI ×2, I2S ×3, ADC (12-bit, 7 channels), PWM (8 channels), touch (4 channels), infrared TX/RX
GPIO: Digital I/O ×24
Operating temperature: -10 °C to +60 °C
Board size: 25.4 × 60 mm
