DFRobot LattePanda IOTA x86 N150, 16GB RAM / 128GB eMMC (No OS)

The LattePanda IOTA is a next-generation, palm-sized x86 single-board computer designed for powerful embedded computing, industrial automation, robotics, and intelligent edge applications. Built around the Intel® Processor N150 and paired with 16GB LPDDR5 memory with IBECC, it delivers up to 8× the performance of the original LattePanda V1—all while maintaining the same compact 88 × 70 mm form factor for seamless upgrades and project continuity.

Alongside its high-performance x86 platform, the IOTA integrates an RP2040 co-processor for real-time I/O control, sensor interfacing, and hardware-level responsiveness. This dual-processor architecture enables reliable multitasking, offloading time-critical tasks from the main CPU. With rich connectivity—including triple USB 3.2 Gen2 ports, Gigabit Ethernet, HDMI 2.1, eDP, and multiple expansion options—the LattePanda IOTA is engineered for demanding professional workflows and flexible integration across multiple industries.



This model includes 16GB LPDDR5 RAM and 128GB eMMC storage, and ships without an operating system, giving you full freedom to install Windows 10/11 or Ubuntu. A heatsink is required before first use to ensure thermal stability.

Quick Spec

• Processor: Intel® Processor N150 (4C/4T, up to 3.6GHz)
• Memory: 16GB LPDDR5 4800MT/s with IBECC
• Storage: 128GB eMMC 5.1
• Co-Processor: RP2040 dual-core MCU
• Video Outputs:
• HDMI 2.1 up to 4096×2160 @ 60Hz
• eDP 1.4b up to 1920×1080 @ 60Hz
• USB:
• 3 × USB 3.2 Gen2 Type-A (10Gbps)
• 1 × USB 2.0 header
• USB-C PD (15V power only)
• Networking: 1 × Gigabit Ethernet (WOL supported)
• Expansion:
• M.2 E-Key (2230)
• PCIe FPC connector
• TF card slot
• GPIO / Interfaces:
• Up to 16× digital I/O
• Up to 3× analog inputs
• UART, USB 2.0, fan port, power connectors
• TDP: Configurable 6W–15W
• OS Support: Windows 10/11, Ubuntu 22.04/24.04
• Power Input:
• USB-C PD 15V
• PH2.0 4-pin 10–15V DC
• Size: 88 × 70 × 19 mm
• Important: Requires heatsink (not included). No OS pre-installed.

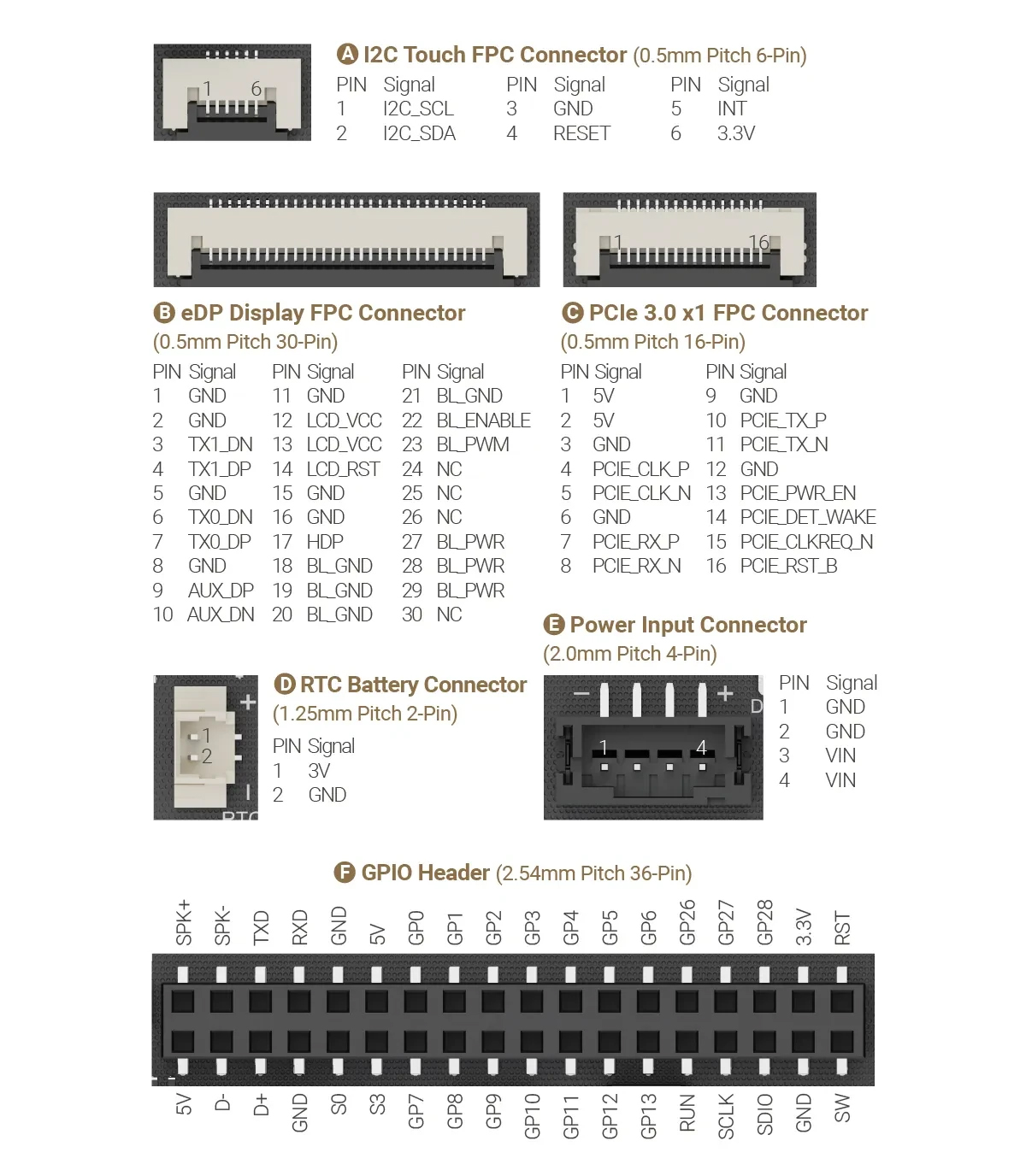

Board Layout

Benchmark

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x DFRobot LattePanda IOTA x86 N150, 16GB RAM / 128GB eMMC (No OS)
• 1 x CR2032 3V RTC Battery
• 1 x Product Manual
