• Description

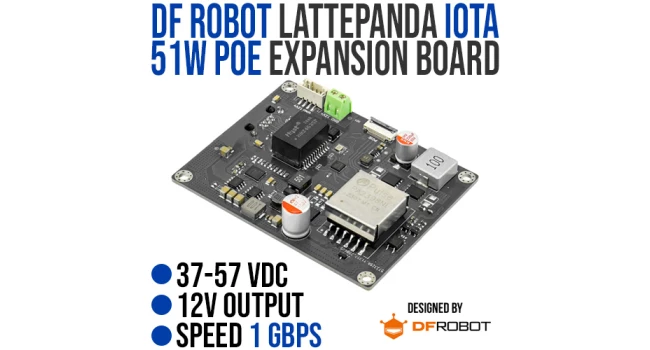

DF Robot LattePanda IOTA 51W PoE Expansion Board

The DFRobot LattePanda IOTA 51W PoE Expansion Board is a powerful all-in-one power and networking solution designed specifically for the LattePanda IOTA single-board computer. Supporting the advanced IEEE 802.3bt (PoE++) standard, it delivers up to 51W of power alongside Gigabit Ethernet data through a single cable. This streamlined design eliminates the need for separate power supplies, making system deployment cleaner, more efficient, and ideal for professional and industrial environments.



With its high power budget, the board ensures stable operation of both the LattePanda IOTA and connected peripherals such as cameras, sensors, and actuators. A built-in 12V DC output further enhances flexibility by allowing external devices to be powered directly from the module. By combining reliable power delivery with high-speed 1Gbps networking, this expansion board is perfectly suited for edge computing, smart surveillance systems, and industrial automation projects.

Quick Spec

• PoE Standard: IEEE 802.3bt (PoE++)
• Input Voltage: 37V – 57V DC
• Output Voltage: 12V DC
• Maximum Output Power: 51W
• Ethernet Speed: 1.0 Gbps (Gigabit)
• Interface: PCIe 3.0 x1 FPC (LattePanda IOTA)
• Power Outputs:
• 4-pin connector (board power)
• 12V DC output (external devices)
• Dimensions: 88 × 70 mm

Resources

• Product Page
• Product Wiki

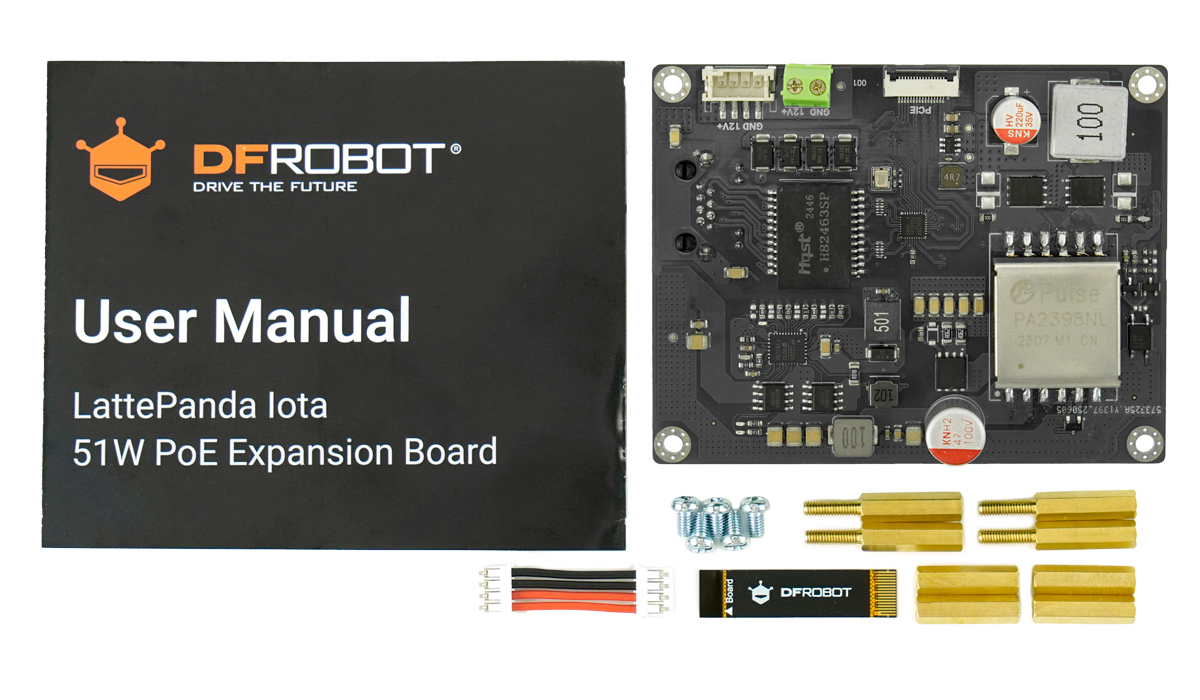

Shipping List

• 1 x DF Robot LattePanda IOTA 51W PoE Expansion Board
• 1 x 16-Pin FPC Cable
• 1 x 4-Pin Power Cable
• 4 x M3 Single-ended Hex Standoff (for stacking on top)
• 4 x M3 Double-ended Hex Standoff (for side-by-side mounting)
• 4 x M3 Screw
• 1 x User Manual

DF Robot LattePanda IOTA 51W PoE Expansion Board

• Brand: DF Robot
• Product Code: DFR1248
• Weight: 0.098kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R775.00 (Inc Tax: R891.25)
