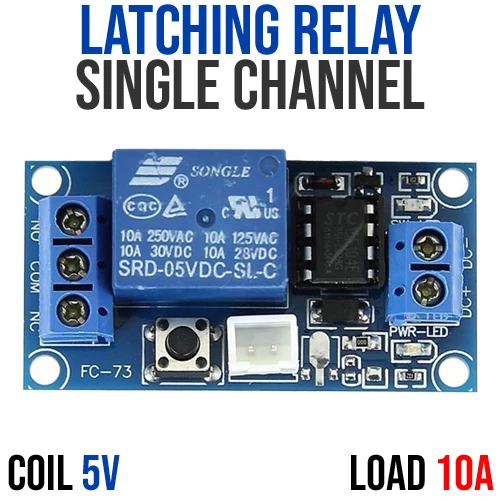

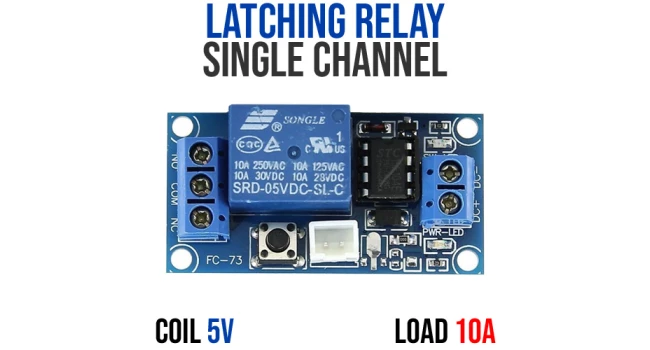

Latching Relay Single Channel - Trigger 5V
The Latching Relay Single Channel Module (5V Trigger) is an energy-efficient switching solution that changes state using a brief pulse rather than continuous power. Unlike standard relays, it retains its ON or OFF position without constant current, making it ideal for low-power systems, microcontroller-based projects, and battery-operated applications.
Featuring a single-pole double-throw (SPDT) relay, this module supports high load switching while offering simple control options. It includes an onboard push button for manual operation and can also be triggered externally via the included cable or custom circuitry, allowing seamless integration into automation systems and DIY electronics.
Quick Spec
- Trigger voltage: 5V DC
- Working current: 70mA
- Standby current: 1µA
- Load capacity:
- AC: 250V / 10A
- DC: 30V / 10A
- Relay type: SPDT (single-pole, double-throw)
- Trigger mode: low pulse trigger
- Control: onboard push button + external trigger input
- Dimensions: 50 × 26 mm
Dimensions

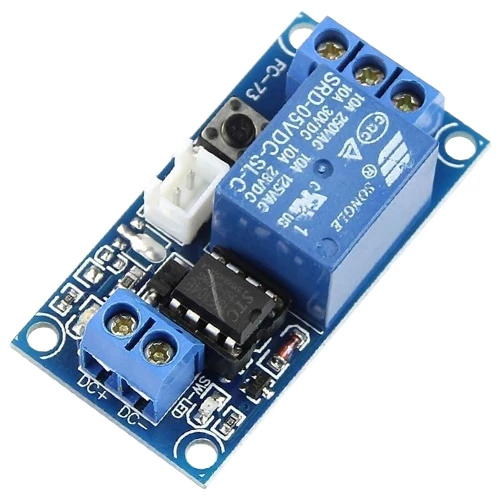

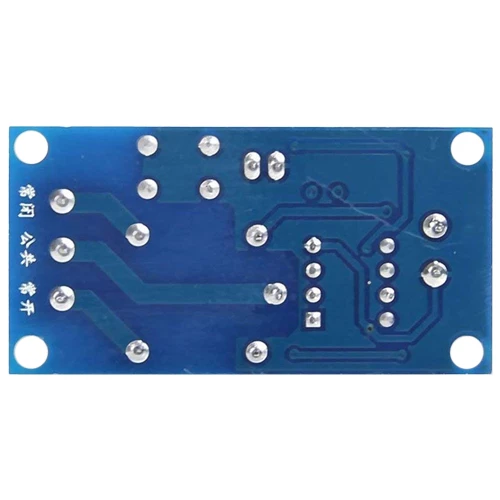

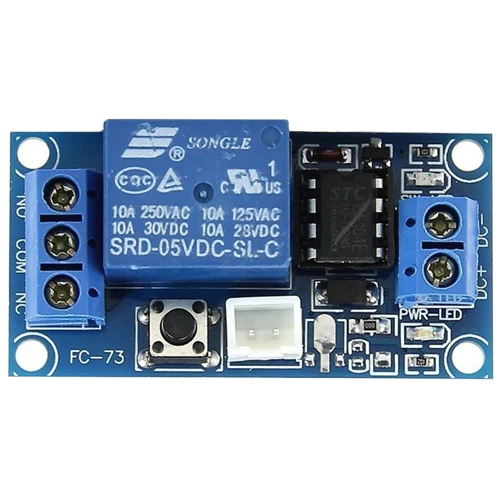

Board Layout

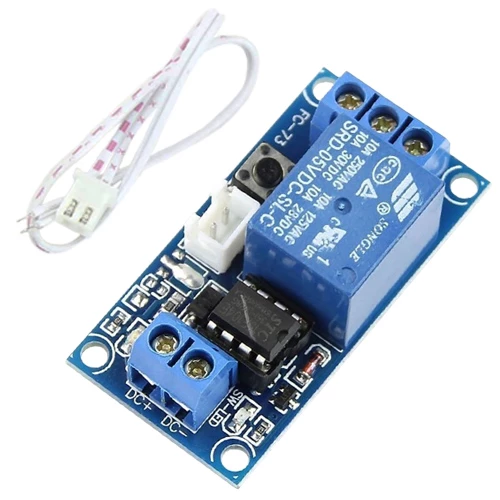

Shipping List
- 1 x 1 Channel Latching Relay - 5V
- 1 x ±150mm 2-PinJST Cable
Latching Relay Single Channel - Trigger 5V
- Brand: Generic
- Product Code: FC-73-5V
- Weight: 0.02kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | DX2-07 |
| Stellenbosch | In Stock | B0338 |
We ship free of charge between branches to complete your order.
-
R42.00 (Inc Tax: R48.30)
