HAT Maker for the Pi Education

Raspberry Pi aims to bring the power of computing and digital making to the masses. It is being used by many educators, makers, and also engineers. The Maker pHAT simplifies the process of getting started with Raspberry Pi without additional monitor, keyboard or mouse (Headless), simplifies learning electronics, simplifies troubleshooting and prototyping, and proper shutdown.

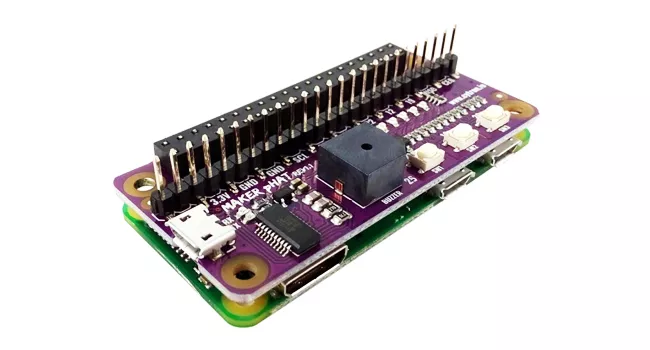

The Maker pHAT is designed to be the same size as Raspberry Pi Zero board, it stacks perfectly on top of Rpi Zero with the four mounting holes aligned. Maker pHAT is also compatible with Raspberry Pi 3B, 3B+, 3A+, and of course the latest 4B too. You just need to insert the 2x20 stacking header(included).

Product Video

Quick Spec

  • aspberry Pi Zero size, stack perfectly on to Pi Zero Series of SBC (Single Board Computer)
  • Compatible with standard size Raspberry Pi 3B/3B+/4B1GB/4B2GB/4B4GB, medium size Raspberry Pi 3A+ and smaller size Raspberry Pi Zero/W/WH
  • Standard Raspberry Pi GPIO footprint
  • LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19)
  • 3x on board programmable push buttons (GPIO 21, 19 and 20, need to configure as input pull up)
  • Onboard active buzzer (GPIO 26)
  • Proper label for all GPIOs, including SPI, UART, I2C, 5V, 3.3V, and GND
  • Utilize USB Micro-B socket for 5V input and USB to UART communication
  • USB serial facilitated by the CH340, Rev1.10 uses FT231X as the USB to UART
  • Input voltage: USB 5V, from the computer, power bank or standard USB adapter
  • Weight: 36g

Board Layout


Resources

Shipping List

  • 1 x Maker pHAT
  • 1 x 2x20 Stacking Header


HAT Maker for the Pi Education

  • Brand: Generic
  • Product Code: HAT-MAKER
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock U009
    Stellenbosch In Stock C0281
  • R168.00 (Inc Tax: R193.20)
