• Description

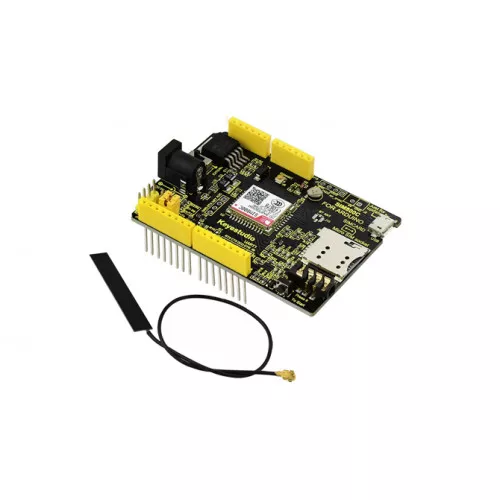

Keyes GSM Shield - SIM800C

This is a GPRS / GSM Arduino expansion board developed by Keyes. It is a shield module with frequency of EGSM 900MHz / DCS 1800MHz and GSM850 MHz / PCS 1900MHz, integrated with GPRS, DTMF and other functions. It supports DTMF, and when the DTMF function is enabled, you can get the character feedback from the conversion with the button pressed down during the call, which can be used for remote control.



The GSM Shield is controlled by the AT commands. You can directly start its function through the computer serial port and Arduino motherboard. The SIM800C GPRS Shield board has a built-in SIM800H chip with good stability.

Quick Spec

• Power Supply: 7-12V
• Low Power Consumption: 0.7mA current in sleep mode
• Low Battery Consumption: 100mA @ 7V-GSM mode
• GSM 850/900/1800/1900MHz
• GPRS multi-slot class 1 ~ 12
• GPRS mobile station class B
• GSM phase 2/2 + standard
• Class 4 (2W @ 850/900 MHz)
• Class 1 (1W @ 1800 / 1900MHz)
• Controlling via AT commands
• USB /Arduino control switch
• Serial baud rate self-adaption
• Support DTMF
• LED indicator for power supply status, network status and operating mode
• Dimensions: 77 x 52 x 27mm

Dimensions

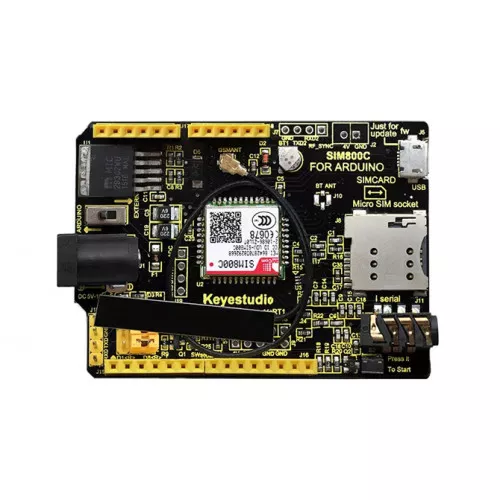

Board Layout

Resources

• Product Page
• Product Wiki
• AT Commands
• Additional Information

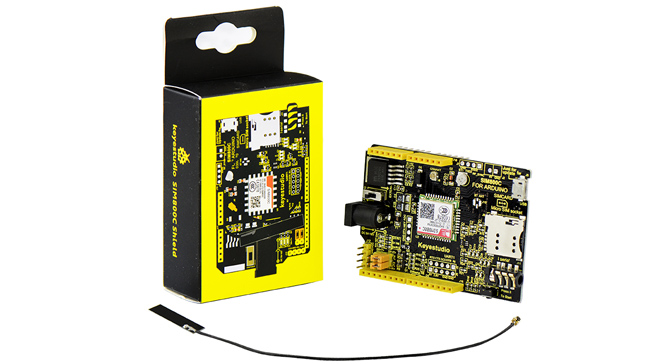

Shipping List

• 1 x Keyes GSM Shield - SIM800C
• 1 x Antenna

Keyes GSM Shield - SIM800C

• Brand: Generic
• Product Code: KS0254
• Weight: 0.032kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	AA239
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R279.00 (Inc Tax: R320.85)
