• Description

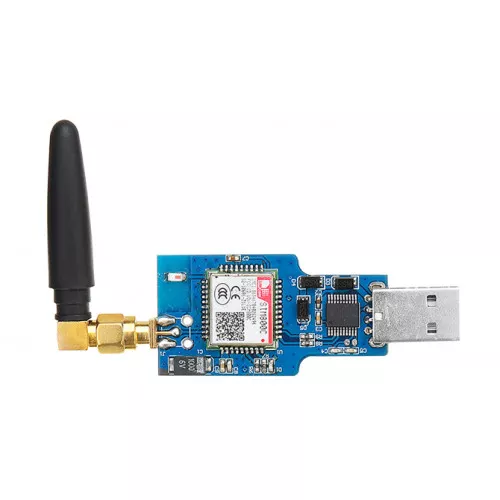

SIM800C GSM Module - USB

This USB to GSM is a quad-band GSM/GPRS module with stable performance, compact appearance and high cost performance, which can meet the various needs of customers. Integrated USB to serial port chip, plug directly into the computer to debug. The SIM800C operates at GSM/GPRS 850/900/1800/1900MHz and is used worldwide. It can transmit voice, SMS information and data information with low power consumption, and can be applied to various compact product design requirements.

Quick Spec

• Working Voltage: 5VDC
• Working Temperature Range: -20 ~ +85°C
• Working Humidity Range: 0%-95%RH
• USB communication
• Supports PC software automation
• Double antenna (GSM & Bluetooth)
• Supports quad-band
• Supports 2G
• Adaptive frequency
• Supports Bluetooth;
• On-board original SIM800C GSM/GPRS module
• On-board CH340T USB to serial port chip
• Support GPRS data transmission under 2G network, which can be applied to mobile meter reading and other occasions
• Supports Bluetooth data transmission, IEEE802.15 Bluetooth standard, 2.4GHz working frequency band
• Support adaptive baud rate
• Antenna Size: 50 x 17 x 11mm
• Dimensions: 70 x 27 x 6mm
• Net Weight: 19g

Board Layout

Resources

• User Manual
• Schematic
• AT Command Manual
• CH340 Drivers for Windows, Mac and Linux

Shipping List

• 1 x SIM800C GSM Module - USB
• 1 x Quad Band GSM Antenna

SIM800C GSM Module - USB

• Brand: Generic
• Product Code: SIM800C-USB
• Weight: 0.019kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R248.00 (Inc Tax: R285.20)
